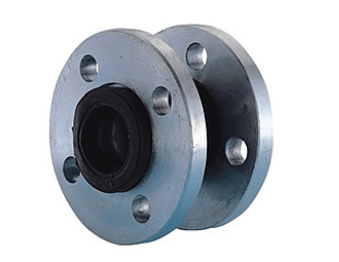

Art. 2831 Genebre anti-vibration flange compensator - performs tasks to compensate for displacements and shifts of pipeline sections, to reduce and completely eliminate hydraulic shocks, vibration and noise negative effects. In addition, experts recommend using an anti-vibration compensator to connect such sections of the pipeline that may be under the influence of high vibration overloads (connecting additional equipment to the system, for example, pumps, compensators and others).
The Genebre anti-vibration flange compensator is applicable in order to compensate for the temperature effects of the environment within the limits specified by the technical parameters of the impact.
Maximum operating temperature: up to +180°C
Operating temperature: -10 to +105°C
Working pressure: 10 bar
Diameter: from DN32 to DN500
Materials:
Housing: EPDM
Connection body: carbon steel
Connection type: flange/flange
