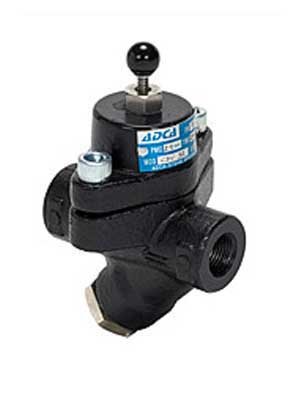

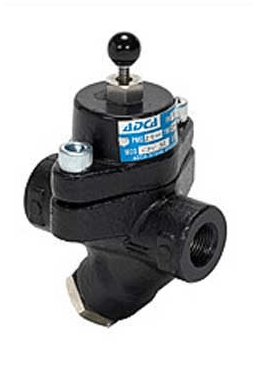

Drainage condensate drain CDV32 (15 CDV32 r/r P250GH(A105) dP=22)

CDV32 - a drain valve that allows you to automatically drain condensate from the system when starting or stopping the system. Drainage of the system during shutdown will avoid possible problems with defrosting of the steam line.

The spring mechanism in the valve body keeps the condensate trap open in cases where the overpressure in the system is below 1.5 bar.

When the system is started and a pressure value exceeding 1.5 bar is reached, the valve closes and remains sealed during the entire operation of the steam line.

It is recommended to install this condensate drain in the lower part of the system.
