High-performance and reliable gear motors of the family MOTOX I have outstanding torque indicators, a wide range of available capacities of the built-in electric motor. An endless number of different combinations for optimal compliance with the specified requirements for the drive device. Brake systems of various types of action, a wide range of components and sensors are available to equip the entire line of gear motors.

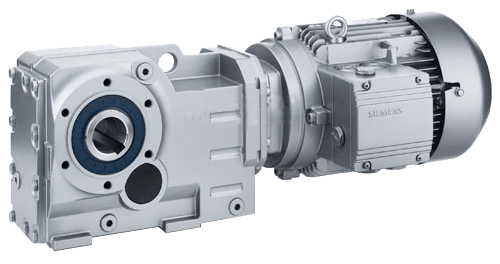

Conical-cylindrical gearboxes of MOTOX with an angular motor arrangement, there is a range of models in a wide range of capacities (up to 200 kW), 11 standard sizes, 8 mounting options (support, various types of flanges, including for extruders, agitators, mixers and others), hollow or solid shaft.
The scope of application of conical-cylindrical gearboxes is very extensive, the most popular tasks are: mixers, transport, cable drums and other production applications.
Technical characteristics of the bevel-cylindrical gearboxes of the MOTOX B/K series
- Rated torque: from 130 to 20,000 Nm;
- Engine power: up to 200 kW;
- Number of steps: 2 (B28, B38) /3 (K38 - K188);
- Reduction coefficient: 3,57 - 65,69 (B28, B38) /5,36 - 307,24 (K38 - K188);
- Overall size: 28 - 188.
Nominal characteristics of standard sizes of conical-cylindrical gearboxes of the MOTOX B /K family
Type gearboxes | Torque moment, Nm | Ratio reductions | Quantity steps |
B28 | 130 | 3,57 - 57,53 | 2
|
B38 | 250 | 3,84 - 65,69 | |
K38 | 250 | 5,65 - 179,13 | 3 |
K48 | 450 | 7,22 - 169,53 | |
K68 | 820 | 5,36 - 243,72 | |
K88 | 1 650 | 5,54 - 302,68 | |
K108 | 3 000 | 7,68 - 307,24 | |
K128 | 4 700 | 7,1 - 295,38 | |
K148 | 8 000 | 4,83 - 306,08 | |
K168 | 13 500 | 6,61 - 287,95 | |
K188 | 20 000 | 12,10 - 191,34 |
To buy conical cylindrical gear motors of MOTOX B /K series, you can find out the price and more information about the product by contacting our specialists.
