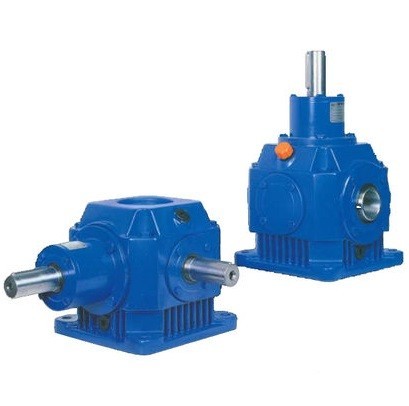

Angular gearboxes with single-stage bevel gear configuration from Rossi, these are compact devices for reducing the speed of rotation of the drive in a practical modular unit and standardized dimensions. A huge variety of mounting solutions, installation on paws or flange connection, horizontal or vertical arrangement of shafts with double extensions.
The model range consists of seven dimensional varieties for various scales of drive equipment. The body is made of cast iron, hardened steel gears with GLEASON gear type, steel shafts of various configurations, reinforced support units with mounted tapered roller bearings, natural or forced cooling.
Technical characteristics of Rossi single-stage angle reducers (catalog L)
- Gear ratio: 1, 2, 2,5, 3,15, 4, 5, 6,25;
- Nominal torque: 3.55 - 600 Nm;
- Power: 0.064 - 335 kW;
- Speed (at the entrance): 90 - 1400 rpm;
- Speed (output): 14 - 1400 rpm;
- Number of steps: 1;
- Mounting design: B3, B6, B7, B8, V5, V6.
Standard sizes of Rossi bevel gearboxes (cat. L)
Type of gearbox | Moment, Nm | Power, kW |
RC 80 PO | 3,55 - 8,5 | 0,064 - 7,8 |
RC 100 PO | 7,1 - 17,0 | 0,128 - 15,5 |
RC 125 PO | 14,0 - 33,5 | 0,256 - 31,1 |
RC 160 PO | 30,0 - 75,0 | 0,57 - 45 |
RC 200 PO | 60,0 - 150 | 1,13 - 90 |
RC 250 PO | 117 - 300 | 2,26 - 180 |
RC 320 PO | 236 - 600 | 4,25 - 335 |
You can buy Rossi single-stage bevel gearboxes (catalog L), find out the price and more information about the product by contacting our specialists.
