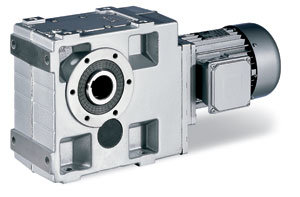

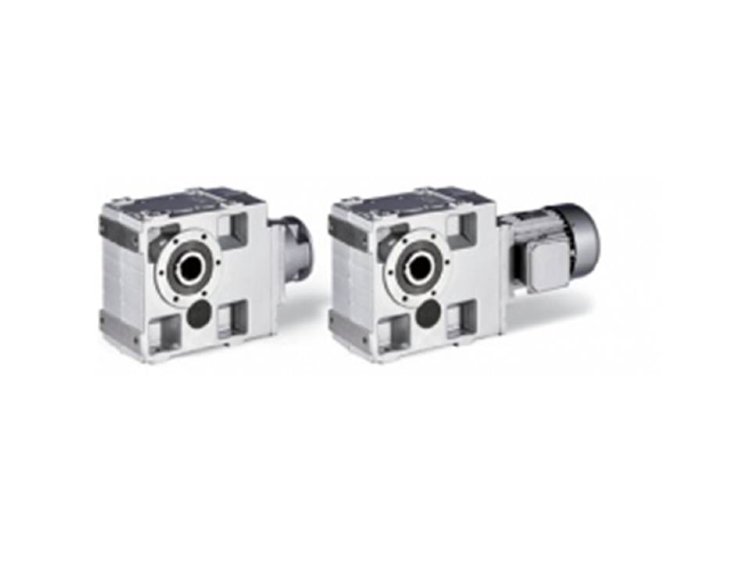

Conical-cylindrical GKS gear motors with a hollow or solid shaft, they provide a sufficiently high efficiency when used.
Great possibilities for selecting a gearbox are possible due to a wide range of gear ratios from 5 to 315.
Versions at the gearbox inlet:
- gear motor
- servo gear motor
- gear motor with integrated frequency converter
- flange for motors with IEC standard
- free input shaft
- compact devices
Variants of the gearbox output:
- solid shaft
- hollow shaft
- hollow shaft with insert
- paws
- the flange
- centered threaded hole
Conical-cylindrical gear motors Lenze GKS They are available with the following power range: 0.12 - 45 kW, which allows you to accurately select the required output shaft speed.
The design of all Lenze engines is based on the modular principle, which ensures the high flexibility of the proposed gear motors.
Reliability in operation is ensured by insulation class F and protection degree IP 55.
The double-coated wire winding with additional phase insulation has a high degree of protection against breakdowns, withstands high voltages and is particularly resistant to mechanical damage.
To solve the widest range of complex drive tasks, this type of gear motors is perfectly combined with a frequency converter and a Lenze servo converter.
Tapered cylindrical gear motors with integrated motec frequency converter are ideal for compact, decentralized drive applications.
GKS Gearbox size Gear ratio range
04 05 06 07 09 1 14
Output torque, nm (at high gear ratio/at high gear)
GKS-3 190 331 702 1330 3080 6072 11790 i=5-328
GKS-4 - 325 702 1330 3080 6072 11639 i=97-1510
