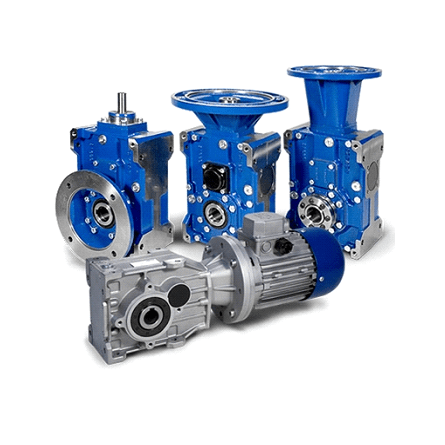

Conical-cylindrical m-reducer of the TS series
The TRAMEC "T" series conical-cylindrical gear motor is equipped with electric motors with a power from 0.09 kW to 45 kW with a torque at the gearbox output from 100 Nm to 12000 Nm.
The gear ratio range from 5/1 to 630/1 allows you to get output speeds from 1.4 to 560 rpm.

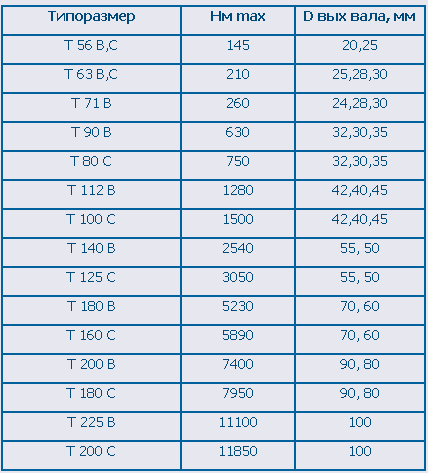

Gearboxes of standard sizes T56 and T63 are made of unpainted aluminum, starting with T71 - of high-strength cast iron, painted blue. The use of high-quality tapered bearings on all shafts guarantees a long service life of the gearbox and very high radial and axial loads. The hollow output shaft is made of high-strength steel as standard, and has various diameters. Depending on the gear ratio used, the gearboxes can be two-stage (B) and three-stage (C).
A wide range of var
