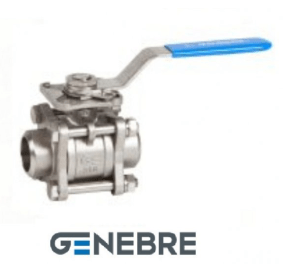

Full-bore ball valve GENEBRE 2026 09 DN050 PN63, body - AISI316, ball - AISI316, ball seal - PTFE+15% GF, SV/SV, lever handle, sq.14mm

2.Butt Weld joints according to

ANSI B 16.25 standards.

3. Made of AISI stainless steel

316(CF8M)

4. PTFE ball seat seal+15%G.F

5. Stem Ring -Viton

6. Stem seal – PTFE+15%G.F

7. The blocking system.

8. The possibility of direct installation of the electric drive

ISO 5211(the system is patented by N9900474)

9. Protection against leaks through the stem hole.

10. Max. working pressure 63 Kg/cm2.

11. Operating temperature -25 ° C + 180 °C



The main purpose of a stainless steel ball valve is to manually shut off the flow of working fluid. All the main components of this three-piece reinforcement are made of stainless steel, including the lid and body, stem, ball and handle, as well as fasteners. A locking washer, a sealing gasket, a stem seal and a ball valve seat are made of PTFE Teflon
