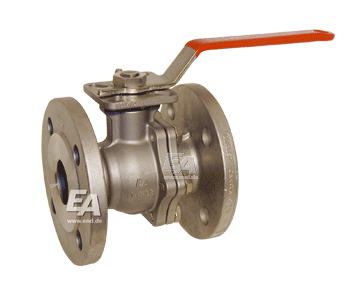

Ball valve DN50, PN16/40,pass-through point Ed.1.4408/PTFE-FKM,ISO5211, EN558-27 2014/34/EU (ATE

ZP311007 Ball valve DN50, PN16/40,full bore Ed.1.4408/PTFE-FKM,ISO5211,Baul.EN558-27

Art.ZP311007

Specifications

• CONNECTION DIN flange
• DIN /EN VERSIONS-Length
• control lever
• SEAL PTFE
• Stainless steel case
• Size DN50
• OPERATING PRESSURE UP TO 40
• Pressure 60
• CONNECTION SIZE (G_DN) DN50
• THE AVERAGE TEMPERATURE IS -30
• THE AVERAGE TEMPERATURE IS UP TO +180
• AMBIENT TEMPERATURE OF 0
• AMBIENT TEMPERATURE up to +80
• stainless STEEL BALL MATERIAL
• STEM SEAL made of PTFE /FKM
• HOUSING DESIGN 2 parts
• STAINLESS STEEL Yes
• CE PED Yes
• DIN FACE TO FACE Yes

ISO 5211 Yes
FIRE SAFETY Yes

Note. The information does not apply to all applications and may need to be checked for your application. It is necessary to take into account the limitations associated with the process parameters (medium, pressure, temperature and flow conditions
