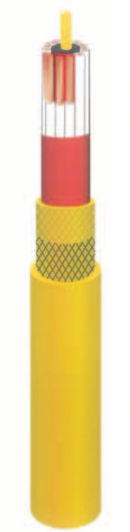

Crane and elevator cables of Prysmian Group PANZERLITE

Prysmian PANZERLITE - flexible low voltage control cable with a particularly durable design, has a double polyurethane-based shell, an optimal combination of mobility and wear resistance. It works with high levels of mechanical load with simultaneous stretching and torsion, with travel speeds up to 240 m/s, while the cable has minimal dimensions and weight for this category of application.

Suitable for vertical applications. A wide temperature range, resistance to ultraviolet radiation and high humidity allows it to be used outdoors.

Technical characteristics of the Prysmian PANZERLITE control crane cable:

• Number of conductive conductors: from 18 to 54;
• Section of the vein: 2.5 mm2;
• Core diameter: 2.2 mm;
• Conductor: copper;
• Configuration: super flexible;
• Marking of veins: white color with black numbering;
• Twisting of veins: direct laying of up to 3 layers, central support element made of aramid fibers;
• Isolation: a special compound based on a technopolymer;
• The inner shell: special compound based on polyurethane;
• Protective shells: textile braid, a particularly strong connection between the inner and outer shell;
• The outer shell: special compound based on polyurethane, yellow color;
• Maximum operating speed (m/min): 240;
• Maximum mechanical load (tension): from 2000 N to 4000 N;
• The maximum permissible temperature for the conductor: +90 °C;
• The temperature is stationary: -40 °C ... +80 °C;
• Temperature is movable: -30 °C ... +80 °C;

Environmental requirements: Unlimited outdoor and indoor use, resistant to UV radiation, oils and moisture.
