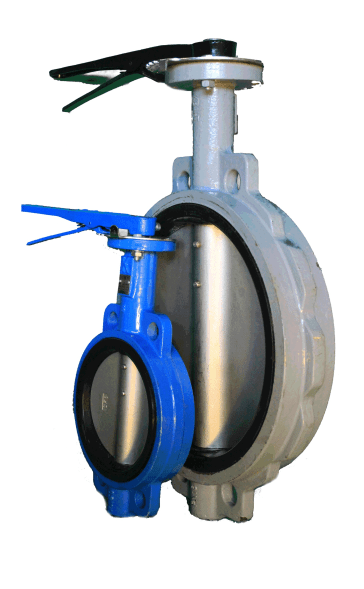

Rotary disc shutter KV01-11-22E PN16/PN10 body:carbon steel, disc:carbon steel (Ni), EPD

KV01-21-11E-X-10(16) Rotary disc gate KVANT PN16/PN10, body:cast iron, disc:cast iron (Ni), EPDM flanged

Concentric rotary valves for flange mounting.
Application: cold and hot water, clean and salt water, oils and petroleum products, bulk materials, compressed air, etc.

Construction

• Flanged with smooth holes
• Elastic internal seal (replaceable), eliminating contact of the housing with the working medium
• One-piece shutter axis to reduce the likelihood of leaks
• Control: handle; gearbox; it is possible to connect the drive
• Installation between flanges
• Protective epoxy coating of 150 microns.

(Hydraulic crimping is performed with a coefficient of 1.1 to the operating pressure.)
