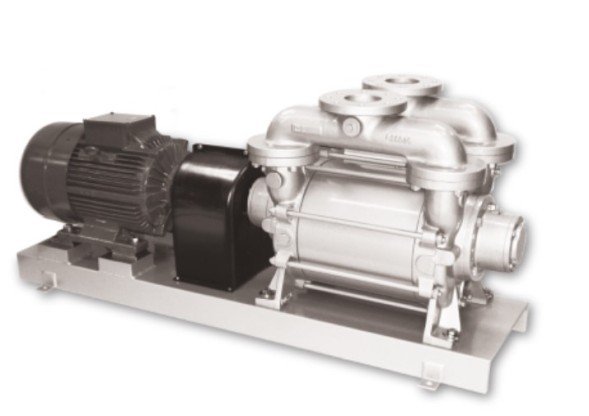

LA 2408 A Vacuum pump Q=2400m3/h 75kW
Dolphin LA 1908 - 2808 A
Dolphin LA is a series of advanced liquid ring vacuum pumps mounted on a base plate. The proven compression principle allows them to be used in all industries. These pumps work effectively in the most demanding processes, for example, pumping out saturated gases and vapors.
Application-specific orientation
Dolphin vacuum pumps are designed for continuous operation. Various versions and additional devices make it easy to adapt pumps for a wide variety of technological processes.
Reliability
They are provided with a robust construction and materials selected for a specific application.
Verified
The modular design with a base plate allows you to create various assemblies that correspond to the application areas.
Areas of application
- Chemical industry
- Pharmaceutical industry
- Oil and gas industry
- Plastics production
- Beverage production
Environmental protection technologies
- Paper industry
- Medical technologies
- Food technology
- Brick production
- Drying and impregnation
- Absorption and degassing
- Metallurgy
Dolphin is reliable and compact. It is ideal for use in difficult conditions.
Technical specifications
Typically, liquid ring pumps use water as the working medium. The eccentrically mounted impeller rotates inside a housing partially filled with liquid. As a result of the rotational movement of the impeller, a centrifugal force arises, under the action of which the liquid inside the cylindrical body forms a so-called liquid ring. The gas moves in the spaces between the individual blades and the liquid ring. Due to the eccentric arrangement of the impeller, these gaps increase and the process gas is sucked through the suction channel. As the impeller rotates further, the gaps decrease, the gas is compressed and exits through the discharge channel. A cooling system with water circulation can be used for a vacuum pump, and the cooling circuit can be either open or closed.
Direct-flow system
The working fluid continuously passes through the pump and is discharged together with the gas.
Partially recoverable system
The working fluid in the system is pumped into a reservoir that allows the separation of gas and liquid. After recirculation, the liquid is fed back into the pump as a working fluid along with the new liquid, replenishing the volume of effluents discharged through the overflow pipe of the tank.
Fully recoverable system
In a full circulation system, the working fluid and gas are separated in a tank, after which all the liquid is fed back to the pump through a heat exchanger that removes the heat generated during compression.
