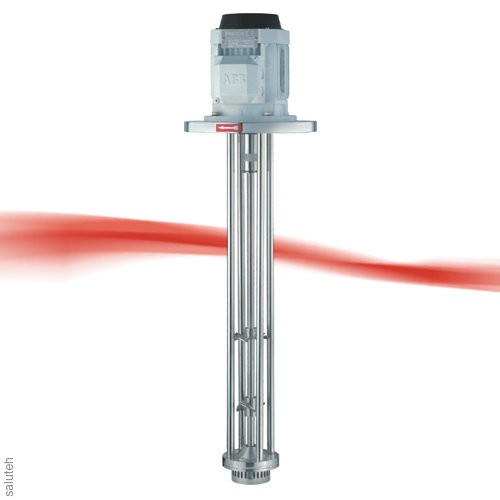

High-cut mixer The ME-1100 series is a process solution dispersion, emulsification, homogenization and disintegration solid mechanical inclusions in the food, cosmetic, pharmaceutical industries, as well as in the fine chemicals industry.
These mixers are designed to work at atmospheric pressure with products of high or low viscosity. If the product is of high viscosity, it is recommended to install an anchor type agitator together with the mixer.

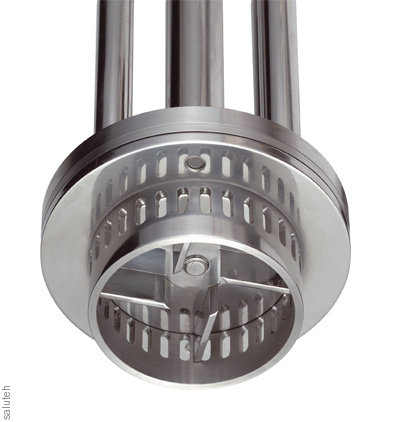

The high speed and verified tolerances of the rotor and stator result in a high suction potential, the product is sucked from the bottom of the container and directed to the center of the working head.
The product is sucked into the lower part of the rotor and radially ejected by the rotor. Passing through the holes of the stator, the product is mechanically cut at a speed of 20 m/s. And then the product experiences hydraulic cutting by passing through the holes of the stator at high speed. And again, the product returns to the working head, providing continuous and powerful circulation inside the container.
The combination of vertical suction and radial discharge results in recirculation of the flow below the surface without turbulence.
With the right selection of power and size mixer The ingredients in the container pass through the working head hundreds of times, which contributes to progressive and homogeneous homogenization.
Another important feature is the ability to minimize the aeration of the product.
Design and characteristics
Increased cutting, reducing the particle size to less than 100 microns.
A V-shaped ring.
A stator with oblong holes.
The possibility of replacing the stator and bearing without disassembling the mixer.
Various types of interchangeable working heads.
Electric motor: IEC B5, IP55, F-class insulation.
Materials
Parts in contact with the product: AISI-316L
Bearing guide: PTFE
V-shaped ring: NBR
Options
DIN2632-PN10 flange or rectangular flange for mounting on a capacious
The circulation propeller.
A vortex propeller.
Peak bearing and ceramic shaft lining for working with
abrasive materials.
Disintegrating head.
Fine-mesh head.
Intermediate flange for long mixers.
The SLIM system.
The upper suction head.
The casing of the electric motor.
Other engine protections.
