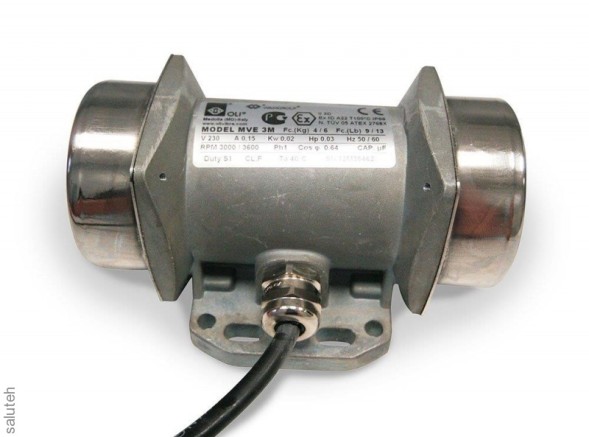

MICRO 3/3E MONO 230V (3/3M) pad vibrator
Standard series of pad vibrators MICRO MVE single-phase with frequency 3000 rpm. This type of pad vibrators provides centrifugal force from 4 to 45 kg. The pad vibrator is ATEX ExII3D and ETL certified, Class II, Division 2 for use in the presence of potentially flammable powders.
| Article number | E200003M |
| Manufacturer | OLI S.P.A |
| Length (mm) | 145 |
| Width (mm) | 110 |
| Height (mm) | 76.5 |
| Gross weight (kg) | 1.6 |
| Power (kW) | 0.03 |
| Connection type | triangle |
| Working torque (kg*cm) | 0.08 |
| Driving force (kG) | 4 |
| Voltage (V) | 230 |
| Current strength (A max) | 0.3 |
Features
Centrifugal force, kN
0,04
Power, kW:
0,03
Rotation speed, rpm
3000
Rated current, A
0,3
Power Supply, In
~ 230V AC
Weight, kg
1,600
Brand
OLI
