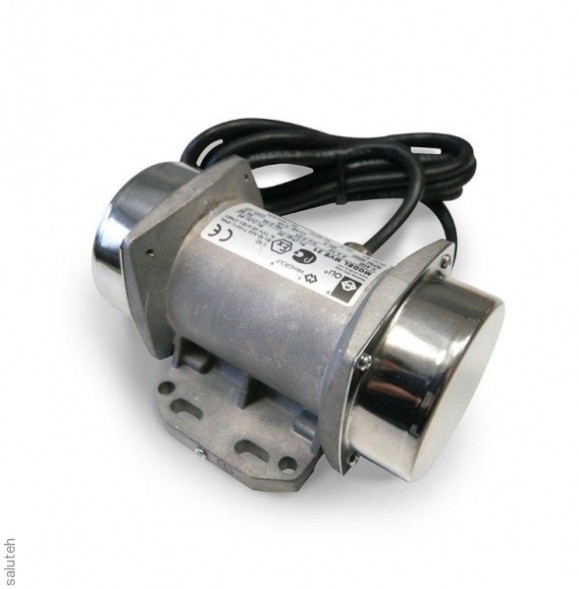

Vibrator pad MICRO 41/3E 400V (3PH) (41/3)

MICRO 41/3E 400V (3PH) (41/3) pad vibrator

Standard series of pad vibrators MICRO MVE single-phase with frequency 3000 rpm. This type of pad vibrators provides centrifugal force from 4 to 45 kg. The pad vibrator is ATEX ExII3D and ETL certified, Class II, Division 2 for use in the presence of potentially flammable powders.

• Duty Cycle: Continuous- S1
• Pace. the environment:  -20°C to 40°C (-4°F to 104°F)
• Max. noise level: 76 dB(A)
• ATEX: II 3 D Ex tD A22 Tx IP 66
• Material: Aluminum housing - Stainless steel cover
• Конденсатор: MICRO 21 - 115v μF 4, 220v 50/60Hz μF1,5 | MICRO 41 - 115v μF 4, 220v 50/60Hz μF3
• Article number EE200004100A0JA0000
• Length (mm) 165
• Width (mm) 110
• Height (mm) 76.5
• Gross weight (kg) 2.4
• Power (kW)              0.06
• Connection type triangle
• Working torque (kg*cm)            0.9
• Driving force (kG)             45
• Voltage (V) 400
• Current strength (A max)          0.18
