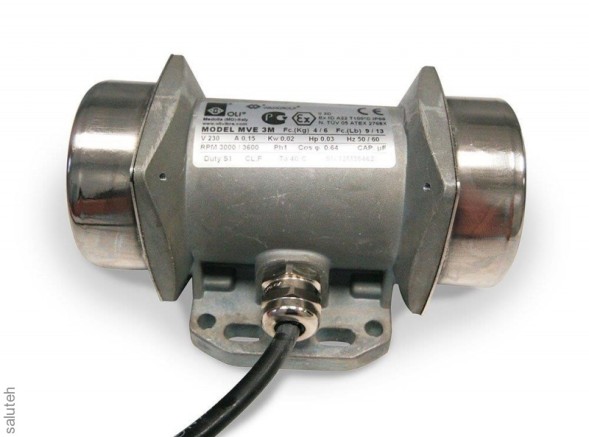

MVE6/3M MICRO Pad Vibrator 3000ob/min 0.06kN 0.03kW 0.3A 230V 1.6kg
Standard series of pad vibrators MICRO MVE single-phase with frequency 3000 rpm.
This type of pad vibrators provides centrifugal force from 4 to 45 kg. The pad vibrator is ATEX ExII3D and ETL certified, Class II, Division 2 for use in the presence of potentially flammable powders.
MVE vibrators are easy to use and do not require special maintenance. Equipped with SKF bearings, the shafts are made of steel alloy and have high load resistance, which guarantees reliable operation of the vibrator.
MICRO MVE series vibrators have the smallest dimensions in the MVE range, which does not prevent them from being very reliable and durable.
| Article number | E200006M |
| The number of people who voted | 2 |
| Manufacturer | OLI S.P.A |
| Rating | 3.27 |
| The sum of the ratings | 8 |
| Length (mm) | 145 |
| Width (mm) | 90 |
| Height (mm) | 76.5 |
| Gross weight (kg) | 1.6 |
| Power (kW) | 0.03 |
| Connection type | triangle |
| Working torque (kg*cm) | 0.12 |
| Driving force (kG) | 6 |
| Voltage (V) | 2 |
Features
Working moment, cmkg
0,10
Centrifugal force, kN
0,06
Power, kW:
0,03
Rotation speed, rpm
3000
Rated current, A
0,3
Power Supply, In
~ 230V AC
Dimensions, mm
145x90x76
Weight, kg
1,600
Brand
OLI
