Horizontal blenders The table is designed for dissolving powdery substances in liquids under recycling conditions, for example, when preparing pharmaceutical syrups or dissolving pectin in glucose for the production of jam. Each model can be supplemented with a flow mixer to completely dissolve possible clots. These blenders are widely used in dairy production to restore or stabilize milk, as well as in the preparation of syrups in the beverage industry.
The principle of operation

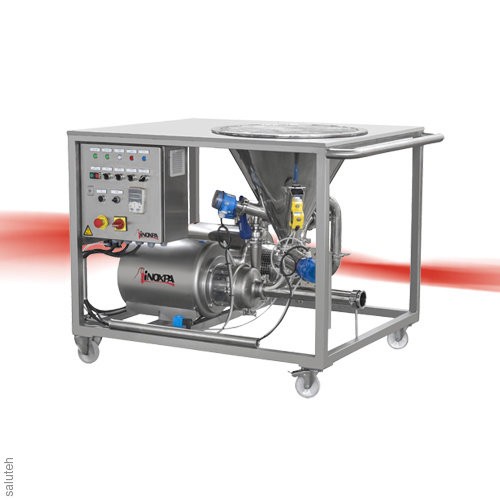

Compact horizontal blender It consists of a centrifugal pump with a venturi suction system and a funnel with a disc gate for adjusting the supply of dry ingredients. In this design, the suction system and venturi are placed horizontally. To completely dissolve possible clots, a flow mixer can be installed after the centrifugal pump.
A vacuum is created at the base of the funnel, the dry substance is sucked in and, passing through the pump body, dissolves. For the best result, it is recommended to recycle the product (batch production) for some time after the complete introduction of the dry substance. In some cases, the blender can be used for in-line production, it all depends on the type of additive and the degree of dissolution.
Design and characteristics
Equipment for fast and homogeneous mixing of various powdered additives and liquids without contact with the atmosphere.
IE2 electric motors, according to EU Regulation 640/2009.
Hygienic design.
ISO 2852 clamp connections for quick installation/disassembly.
Self-cleaning and disinfection.
Mixing with recirculation.
Manual control disc shutter for the funnel.
An additional in-line mixer is used to completely dissolve possible clots.
The table is at a height adequate for unloading bags of additives.
The control panel is made of stainless steel. steel with a start button/Stop and motor protection.
Frame with 2 rotating and 2 fixed wheels with brakes.
Clamp nozzle for complete drainage of the installation.
Materials
Parts in contact with the product: AISI 316L
Other metal parts: AISI 304
Gaskets: EPDM according to FDA
Mechanical Seal: SiC/SiC/EPDM
Polishing of internal surfaces,
as well as funnels: shiny, Ra ≤ 0.8 µm
Surface treatment of the structure and table: matte
Options
Double mechanical seal.
Solenoid valve for the cooling circuit of the mechanical seal.
Gaskets: FPM or PTFE.
Connections: DIN, SMS.
A vibrator for the funnel.
A frequency converter for a centrifugal pump.
A valve with a pneumatic actuator and a minimum level sensor.
Max level sensor.
The control panel is made of stainless steel.steel for vibrator, sensors, frequency converter and automatic valves.

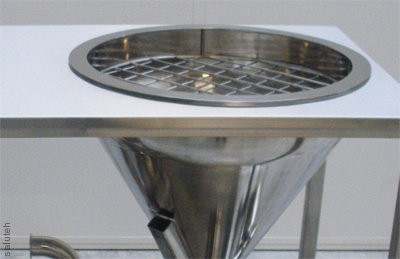

The grid for the funnel.
A recessed grille for the funnel.
