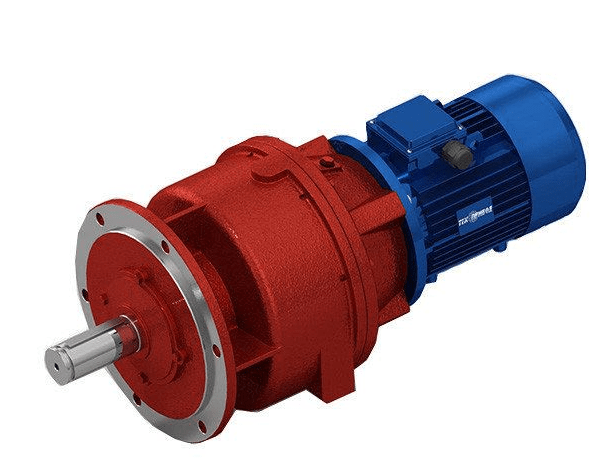

Planetary gear motor MPO-2M-18SH-66,5-7,5/22

Planetary gear motors of the MPO1M-10, MPO2M-10, MPO2M-15, MPO2M-18 types

Appointment.

The MPO1M and MPO2M gear motors are used as a drive for equipment in chemical, medical, microbiological, food and other industries. They are designed both for devices with mixing devices and for general-purpose machines.

Planetary gear reduction motors are a block of an asynchronous blown electric motor and a planetary gearbox.

Conditions of use.

• long-term operation mode;
• rotation of the output shaft in any direction;
• climatic versions of U and T according to GOST 15150;
• non-aggressive and explosive environment (for gear motors with explosion-proof electric motors);
• ambient temperature from 40°C to +50°C;

An example of the gearbox designation when ordering:

МПО2М – 15ВК – 32,1 – 11/45 – 4АМ132М4 – УЗ

• UZ – climatic design and accommodation category
• 4AM132M4 – type of electric motor
• 45 – output shaft rotation speed, rpm
• 11 – engine version
• 32.1 - gear ratio
• 15VC is the nominal diameter of the driver
• MPO2M is a type of gear motor

n is the rated speed of the output shaft, rpm;

Mkr is the rated torque on the output shaft, N•m;

P is the power of the component electric motor, kW

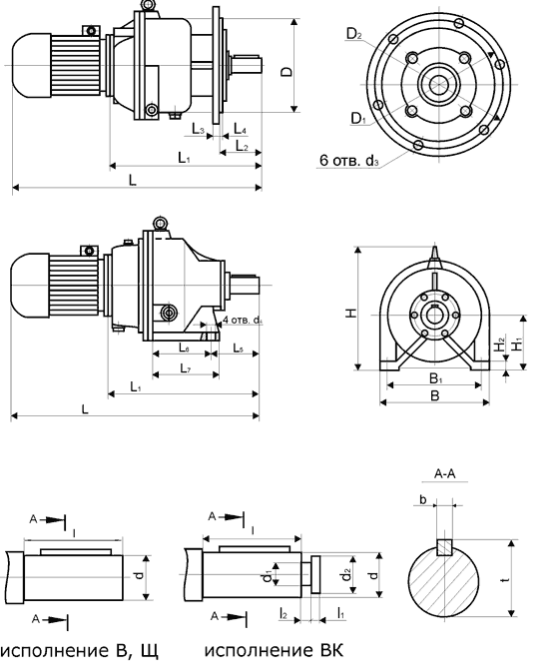

Depending on the position in space, gear motors are manufactured in the following versions:

• Sch – horizontal on the paws;
• F – horizontal flanged;
• B – vertical flanged shaft facing down;
• VK is a vertical flanged shaft facing down with a groove on the output shaft.
