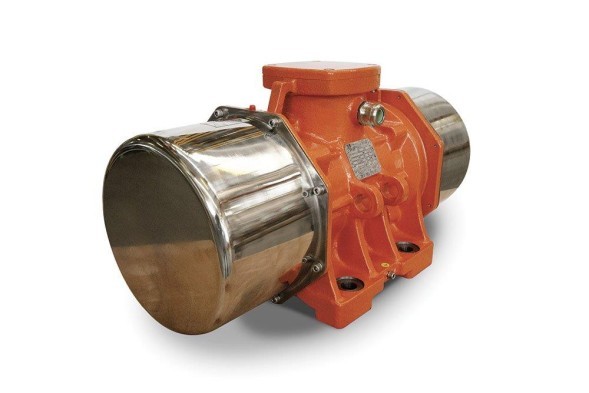

Vibrator pad MVE 1100/15D

MVE1100/15-D Vibrator explosion-proof 1500ob/min 11.1kN 0.65kW 230/400V 44.2kg

The MVE 1100/15-D pad vibrator is the most popular series of MVE pad vibrators. MVE vibrators are easy to use and do not require special maintenance. The design is explosion-proof.

Equipped with SKF bearings, the shafts are made of steel alloy and have high load resistance, which guarantees reliable operation of the vibrator.

• Article number D401100
• Manufacturer OLI S.P.A
• Length (mm) 467
• Width (mm) 209
• Height (mm) 240
• Gross weight (kg) 44.2
• Power (kW)              0.65
• Connection type star
• Working torque (kg*cm)            88.67
• Driving force (kG)             1114
• Voltage (V) 400
• Current strength (A max)          1.5
