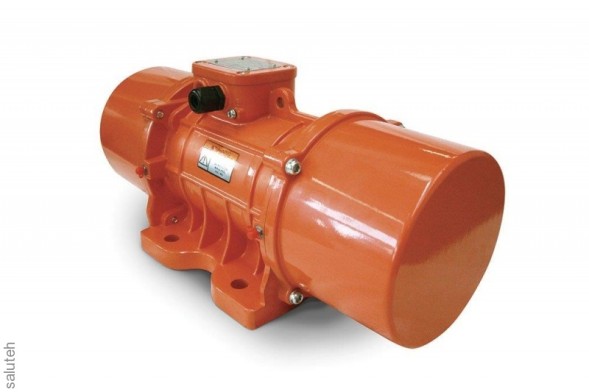

MVE1200/3N-50A0 (MVE1200/3) Pad Vibrator 3000ob/min 10.1kN 0.95kW 1.85A 230/400V 21.6kg
The standard MVE series of pad vibrators is used in almost all industries. The MVE standard series pad vibrator provides centrifugal force from 20 to 26,000 kg with 2, 4, 6 or 8 poles. The MVE pad vibrator is available in single- and three-phase versions, as well as in 12 and 24 VDC versions for use in automobiles. MVE is certified by ATEX ExII3D and ETL, Class II, Division 2 for use in the presence of potentially flammable powders.
The standard series of MVE pad vibrators
The standard series of MVE 2 pole pad vibrators with a frequency of 3000 rpm. This type of pad vibrators provides centrifugal force from 66 to 9025 kg. The pad vibrator is ATEX ExII3D and ETL certified, Class II, Division 2 for use in the presence of potentially flammable powders.
Article number EN(E)20120050A0JA0000
- Manufacturer OLI S.P.A
- Rating 3.3
- The sum of the ratings is 5
- Length (mm) 321
- Width (mm) 208
- Height (mm) 210
- Gross weight (kg) 21.6
- Power (kW) 0.95
- Connection type star
- Working torque (kg*cm) 22.41
- Driving force (kG) 1005
- Voltage (V) 400
- Current strength (A max) 1.85
