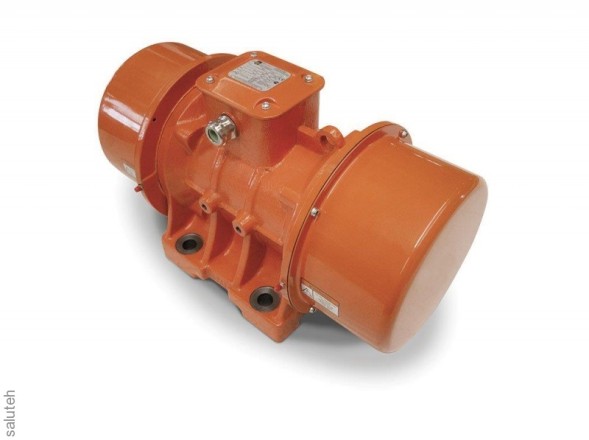

Vibrator pad MVE 1300/075

Standard series of pad vibrators MVE 8 poles with frequency 750 rpm. This type of pad vibrators provides centrifugal force from 105 to 18395 kg. The pad vibrator is ATEX ExII3D and ETL certified, Class II, Division 2 for use in the presence of potentially flammable powders.

• Article number	E801300
  Manufacturer	OLI S.P.A
  Length (mm)	556
  Width (mm)	272
  Height (mm)	295
  Gross weight (kg)	99.8
  Power (kW)	1.2
  Connection type	star
  Working torque (kg*cm)	299.6
  Driving force (kG)	941
  Voltage (V)	400
  Current strength (A max)	2.5
