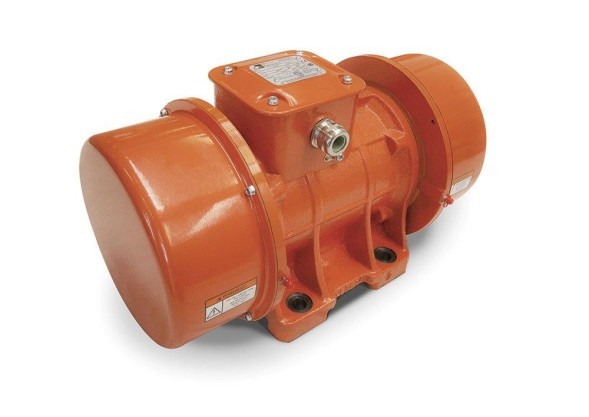

Vibrator pad MVE 1500/1N-60A0 (1500/1)

MVE 1500/1N-60A0 (1500/1) pad vibrator

MVE1500/1 Electric pad vibrator 1000ob/min 15.9kN 1.1kW 2.1A 230/400V 83.6kg is the most popular series of pad vibrators. MVE vibrators are easy to use and do not require special maintenance. Equipped with SKF bearings, the shafts are made of steel alloy and have high load resistance, which guarantees reliable operation of the vibrator.

Operational qualities and advantages:
- Motor protection IP 66 - NEMA 4
- Insulation class F
- 750 /1.000 /1.500 /3.000 rpm
- Single-phase 220V and three-phase 380V power supply
- Compliance With European Standards:
- Low voltage 73/23/EEC
- EMS 89/336/EEC, 98/37/EEC
- ATEX 94/9/EEC
- Excellent value for money

Article number E60150060A0JA0000

• Manufacturer OLI S.P.A
• Length (mm) 562
• Width (mm) 229
• Height (mm) 261.5
• Gross weight (kg) 83.6
• Power (kW)              1.1
• Connection type star
• Working torque (kg*cm)            284.76
• Driving force (kG)             1590
• Voltage (V) 400
• Current strength (A max)          2.1
