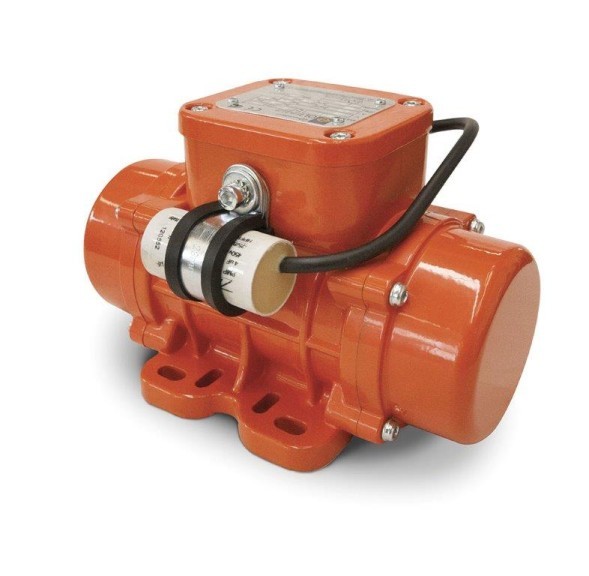

Vibrator pad MVE 60/3E-10A0 MONO 230V (60/3M)

MVE 60/3E-10A0 MONO 230V (60/3M) [uF3] pad vibrator

The OLI MVE 60/3M vibrator is used as a system for transportation, separation, pressing, cleaning, as well as to facilitate the movement of materials.

The high level of design and careful selection of parts ensures the long-term and simplicity of small maintenance operations.

The standard series of MVE 2-pole platform vibrators is single-phase with a frequency of 3000 rpm. This type of pad vibrators provides centrifugal force from 66 to 321 kg. The pad vibrator is ATEX ExII3D and ETL certified, Class II, Division 2 for use in the presence of potentially flammable powders.

Accessories       Condenser Condens. uF 3 (50-60 Hz 230-220V)

• Article number EE200060010A0MA0000
• Manufacturer OLI S.P.A
• Length (mm) 211
• Width (mm) 130
• Height (mm) 136
• Gross weight (kg) 4.2
• Power (kW)              0.08
• Connection type triangle
• Working torque (kg*cm)            1.31
• Driving force (kG)             66
• Voltage (V) 230
• Current strength (A max)          0.43
