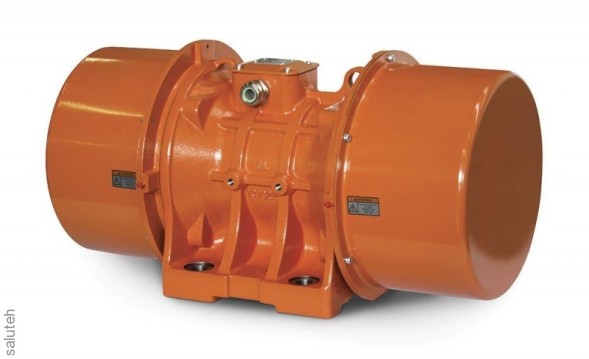

Vibrator pad MVE 6600/1

Standard series of pad vibrators MVE 6 poles with frequency 1000 rpm. This type of pad vibrators provides centrifugal force from 53 to 25532 kg. The pad vibrator is ATEX ExII3D and ETL certified, Class II, Division 2 for use in the presence of potentially flammable powders.

• Article number	E606600
  Manufacturer	OLI S.P.A
  Length (mm)	688
  Width (mm)	378
  Height (mm)	411
  Gross weight (kg)	304.4
  Power (kW)	4.3
  Connection type	star
  Working torque (kg*cm)	1165.19
  Driving force (kG)	6506
  Voltage (V)	400
  Current strength (A max)	7.76
