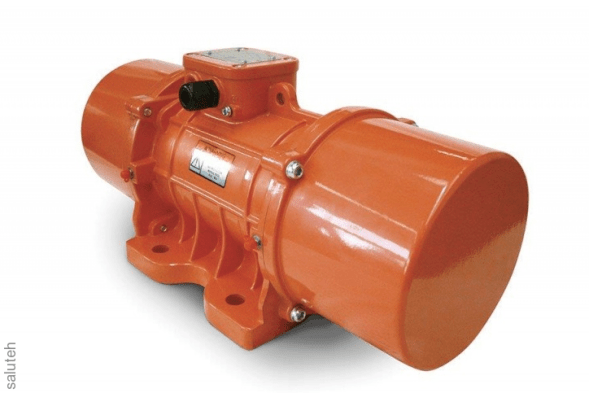

MVE800/3N-50AO (800/3) pad vibrator
MVE pad vibrator The standard MVE pad vibrator series is used in almost all industries.
Specifications:
Vibration
- Operating torque (kg*cm) 15.68
- Driving force (kg) 794
- Debalance (kgcm) 0
Electric power
- Voltage (V) 400
- Electrical power (kW) 0.75
- Current strength (A) 1.45
- Rotation speed (RPM) 3000
- Number of poles 2
- Type of food star
Temperature
- Minimum temperature (C) -20
- Maximum temperature (C) 40
Sizes
- Length (mm) 321
- Width (mm) 208
- Height (mm) 210
- Weight
- Weight (kg) 20.6
Other characteristics
- Continuous Duty cycle-S1
- 2 year warranty
- Maximum noise level (Db A) 0
The MVE 800/3 pad vibrator, an analogue of the IV, is the most popular series of MVE pad vibrators. MVE vibrators are easy to use and do not require special maintenance. Equipped with SKF bearings, the shafts are made of steel alloy and have high load resistance, which guarantees reliable operation of the vibrator.
Operational qualities and advantages:
- Motor protection IP 66 - NEMA 4
- Insulation class F
- 750 /1.000 /1.500 /3.000 rpm
- Single-phase 220V and three-phase 380V power supply
- Compliance With European Standards:
- Low voltage 73/23/EEC
- EMS 89/336/EEC, 98/37/EEC
- ATEX 94/9/EEC
- Excellent value for money
