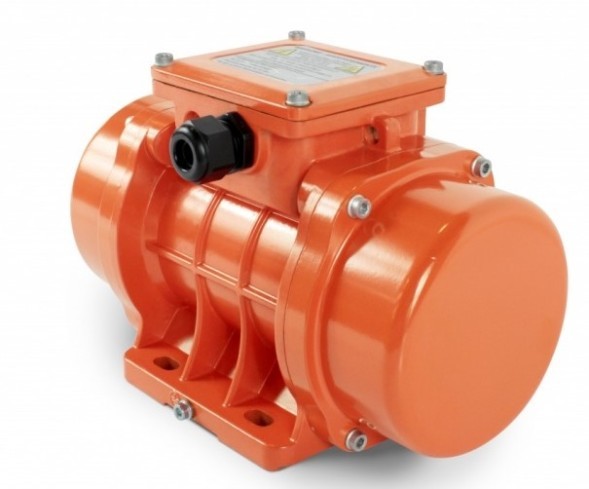

Vibrator pad MVE 90/15N(E)-20A0 (MVE 90/15)

MVE90/15 Electric Vibrator Pad 1500ob/min 0.75kN 0.12kW 0.33A 220/380V 7.4kg

Mechanical parameters:

• Working torque (Kg*cm) 5.97 kgcm
• Debalance 2.98 kgcm
• FC 75 kg
• Bearings
• Type 6302 2Z
• Durability (h)(h)
• 100% >100000
• 80%: >100000
• 50%: >100000

Electrical parameters:

• Rated voltage : 230 V Y : 400 V
• Power (kW) 0.12 kW
• Current : 0.57A Y : 0.33A
• Power factor 0.5
• la/ln 2,4
• Certification
• ETL CLASS II DIV.II GROUP F,G TENV NEMA 4 T4
• ATEX II 3D Ex tD A22 IP66 T 100°
• Amb Temp. -20 ≤ T°C ≤ + 40
