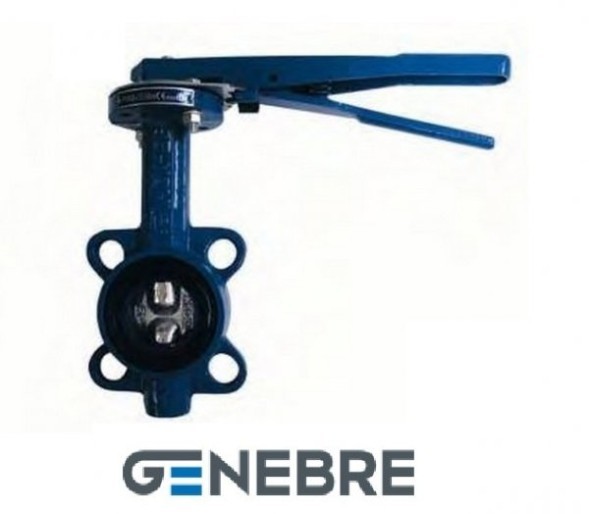

Genebre GG20 /GGG40 /EPDM disc flanged shutter, Tmax +120°C with lever

The disk flanged rotary gate with the GENEBRE 2103 handle is designed to completely block and regulate the intensity of the medium flow through the pipeline. The degree of lumen of the pipe is regulated by rotating the disc around its axis. It is mainly used in water supply and heating systems.

Features of the GENEBRE 2103 disc flanged rotary shutter:

the body material is cast iron with epoxy coating;

the material of the rotary disc is galvanized cast iron;

the seal material is EPDN (vulcanized ethylene propylene diene rubber);

the flanged connection reduces the dimensions of the device and the load on the pipe;

guaranteed tightness;

flange diameter – from 50 to 500 mm;

the possibility of installing a gearbox, pneumatic and electric drive with a flange diameter of 300 mm;

the maximum permissible nominal pressure is 10 atm (diameter from 350 to 500 mm);

maximum permissible nominal pressure
