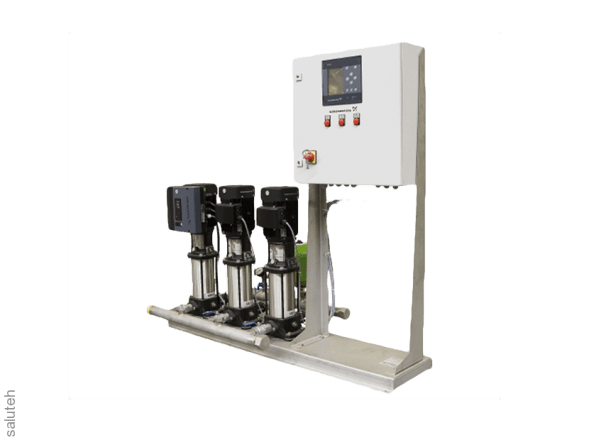

Pumping unit 98436266 Control MPC-E 1x18.5 ESS+Pack

Complete installations for water supply and pressure boosting systems. Pumping units with two to six CR(E) pumps

Control MPC-F for pressure boosting, heating, air conditioning, ventilation systems

Pump control cabinet CR, TP, NB, NK, HS, SP, etc. with CUE frequency converters in the cabinet for each pump.
It is designed for stepless regulation from 1 to 6 standard pumps depending on the adjustable value (pressure, temperature, flow rate, level, etc.).

The standard version includes: a controller with a CU351 Multi Pump Control control panel with a large LCD display (320x240 pixels), a power part, CUE frequency converters for each pump, a main switch, electric motor protection machines, fuses, pump fault indicator lamps, internal cabinet lighting.

Grundfos Control MPC is designed for the following systems:
- district heating systems
- heating systems
- air conditioning systems
- system
