Main application areas
- Water
- Water supply
- Urban wastewater
- Equipment for buildings
- Processing of suspended solids
- Irrigation
- Heating /Air conditioning
- Cooling water and condensate
- Fire fighting and sprinkler installations
- Food products
- Industry and technological process
- Industrial effluents
- Industrial power plants
- Process
- Water distribution
- Special technologies
- Steel
- Waste water
- Heat carriers, cooling circuits
- Swimming pool equipment
- Types of orders
- Water transportation
- Energy industry
- heating /air conditioning /ventilation

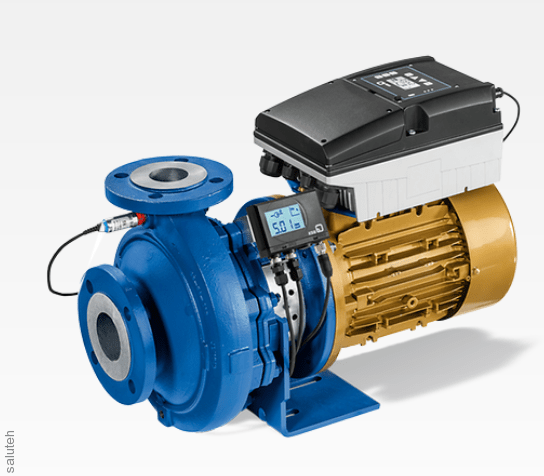

Single-stage monoblock pump with spiral casing, performance according to EN 733. With replaceable shaft bushings and housing slot rings. Scope of application: for water supply, sprinkling, watering, drainage, heating, air conditioning, pumping of drinking water, household water, hot and cold water, swimming pool water, fire extinguishing water, condensate, oils and detergents. Code: EB.
Overview of technical data
| Q (50Hz) | 1.5 – 716.0 (m³/h) |
| H (50Hz) | 2.0 – 144.0 (m) |
| Separation of the body | transverse (radial) |
| Drive motor frequency | 50 Hz /60 Hz |
| Type of drive | electric motor |
| Drive motor voltage | low voltage |
| Number of impeller inputs | single-threaded |
| Impeller material (according to E standard | 1.4408 /A743CF8M, CC480K-GS /B30C90700, JL 1040 /A48CL35 |
| Type of installation | block |
| Type of coupling | directly |
| Max. permissible liquid temperature | 140 (°C) |
| The absence of silicon is guaranteed | yes |
| The position of the nozzle | mechanical suction |
| Maximum operating pressure | PN 16 |
| Process execution | yes |
| Installation of the unit | "dry" installation |
| Shaft material (according to EN standard) | 1.4571, C45+N |
| Suction characteristics | non-self-priming |
| Acceptable for drinking water | yes |
| Housing type | spiral body |
| Type of impeller | closed/radial |
| Type of connection | the flange |
| Housing material (according to EN standard) | 1.4408 /A743GRCF8M, CC480K-GS/B30 C90700, JL 1040 /A48CL35B, JS 1030 /A536 GR 60-40-18 |
| eClass | 36410000, 36410100, 36410101 |
| Installation position | horizontal or vertical |
| Type of shaft seal | mechanical seal |
| Main application areas | Building engineering equipment, Water supply, Energy, Industry and technological processes |
| Housing material | grey cast iron, stainless steel, spherical graphite cast iron, bronze |
| Max. working pressure from the pressure sides | 16 (bar) |
| Max. drive power | 55 (kW) |
| Type of installation | stationary |
| Max. rotation speed | 3500 (1/min) |
Features
Brand
KSB
