Description
A single-stage twin pump with a spiral body in the "in-line" design, the pump and motor shafts are rigidly connected, with an uncooled mechanical seal.
Scope of application
In water heating systems, air conditioning systems, cooling circuits, water supply installations (not intended for drinking water in accordance with the regulations of the Federal Environmental Protection Agency), in domestic water supply installations, industrial circulation systems.
Description

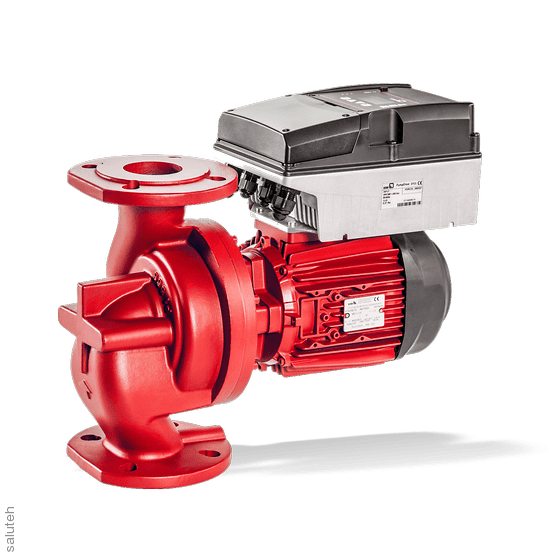

A single-stage pump with a spiral body in the "in-line" design, in the form of a double pump, with a PumpDrive speed control system, the pump and motor shafts are rigidly connected
Scope of application
In water heating systems, air conditioning systems, cooling circuits, water supply installations (not intended for drinking water in accordance with the regulations of the Federal Environmental Protection Agency), in domestic water supply installations, industrial circulation systems
More detailed technical information of Etaline DL
Overview of technical data
| Q (50Hz) | 1.0 – 150.0 (m³/h) |
| H (50Hz) | 1.0 – 21.0 (m) |
| Type of bearing | ball bearing |
| Separation of the body | transverse (radial) |
| Drive motor frequency | 50 Hz |
| Type of drive | electric motor |
| Drive motor voltage | low voltage |
| Impeller material (according to E standard | EN-GJL-150, PSU-GF30 |
| Type of installation | execution of the "in-line" type |
| Type of coupling | directly |
| Type of lubricant | grease/grease with a pumped medium |
| Max. permissible liquid temperature | 120 (°C) |
| The position of the nozzle | execution of the "in-line" type |
| Maximum operating pressure | PN 10 |
| Process execution | yes |
| Installation of the unit | "dry" installation |
| Shaft material (according to EN standard) | STAINLESS |
| Suction characteristics | non-self-priming |
| Type of connection | thread, flange |
| Housing material (according to EN standard) | EN-GJL-150, EN-GJL-200 |
| Installation position | horizontal or vertical |
| Type of shaft seal | mechanical seal |
| Main application areas | Industry and technological processes, Building engineering equipment |
| Housing material | grey cast iron |
| Type of installation | stationary |
| Max. rotation speed | 2900 (1/min) |
