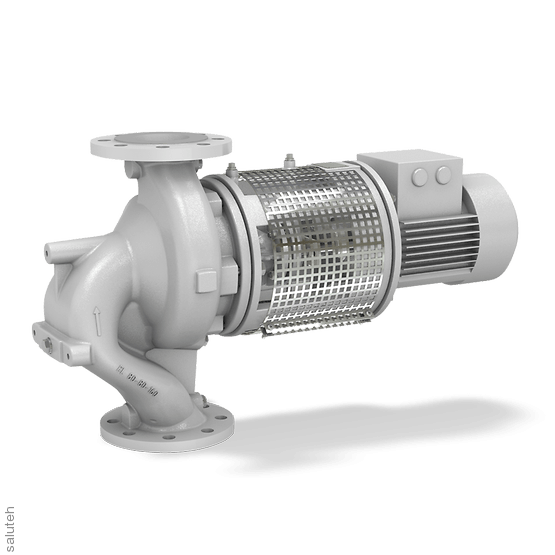

Monoblock single-stage pump with a spiral body, in-line design, with a standard motor. The pump and motor shafts are rigidly connected. Scope of application: in installations for heat transfer (DIN 4754) or for hot water circulation.
Overview of technical data
| Q (50Hz) | 2.0 – 316.0 (m³/h) |
| H (50Hz) | 3.0 – 69.0 (m) |
| Drive | IEC standard engine |
| Electrical connector | 400 V, 3~ |
| Impeller material (according to E standard | 1.4408, EN-GJL-250 |
| Max. permissible liquid temperature | 350 (°C) |
| The position of the nozzle | execution of the "in-line" type |
| Maximum operating pressure | PN 16 |
| Shaft material (according to EN standard) | 1.4021 + QT800 |
| Suction characteristics | non-self-priming |
| Housing type | spiral body |
| Type of impeller | closed/radial |
| Type of connection | the flange |
| UNSPSC classification | 4015150300 |
| Housing material (according to EN standard) | EN-GJS-400-15 |
| eClass | 36410101 |
| Installation position | horizontal |
| Type of shaft seal | mechanical seal |
| Main application areas | Industry and technological processes, Building engineering equipment |
| Housing material | cast iron with spherical graphite |
| Max. working pressure from the pressure sides | 16 (bar) |
| Max. drive power | 22 (kW) |
| Type of installation | stationary |
| Max. rotation speed | 3000 (1/min) |
