Main application areas
- Water
- Equipment for buildings
- Heating /Air conditioning
- Steam, hot water, heat from the SCT
- Food products
- Industry and technological process
- Special technologies
- Steel
- Heat carriers, cooling circuits
- Types of orders
- heating /air conditioning /ventilation

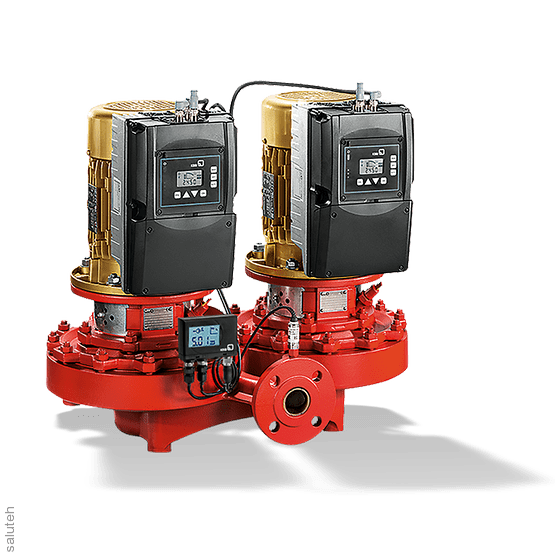

Monoblock pump in the "in-line" design, in the form of a double pump. Scope of application: in water heating and air conditioning systems, domestic water supply installations, cooling water circuits and water supply systems.
Overview of technical data
| Q (50Hz) | 2.0 – 1095.0 (m³/h) |
| H (50Hz) | 2.0 – 38.5 (m) |
| Type of bearing | ball bearing |
| Drive | electric motor |
| Drive motor frequency | 50 Hz |
| Type of drive | electric motor |
| Drive motor voltage | low voltage |
| Electrical connector | 400 V, 3~ |
| Impeller material (according to E standard | 1.4408, CC480K-GS, EN-GJL-250 |
| Type of installation | execution of the "in-line" type |
| Type of coupling | directly |
| Type of lubricant | grease |
| Max. permissible liquid temperature | 140 (°C) |
| The position of the nozzle | execution of the "in-line" type |
| Maximum operating pressure | PN 16 |
| Installation of the unit | "dry" installation |
| Shaft material (according to EN standard) | 1.4571, C45+N |
| Suction characteristics | non-self-priming |
| Acceptable for drinking water | yes |
| Housing type | spiral body |
| Type of impeller | closed, radial |
| Type of connection | the flange |
| UNSPSC classification | 4515150300 |
| Housing material (according to EN standard) | EN-GJL-250 |
| eClass | 36410101, 36410100 |
| Installation position | horizontal or vertical |
| Type of shaft seal | mechanical seal |
| Main application areas | Water supply, Building engineering equipment, Industry and technological processes |
| Housing material | grey cast iron |
| Max. working pressure from the pressure sides | 16 (bar) |
| Max. drive power | 55 (kW) |
| Type of installation | stationary |
| Max. rotation speed | 2900 (1/min) |
Features
Brand
KSB
