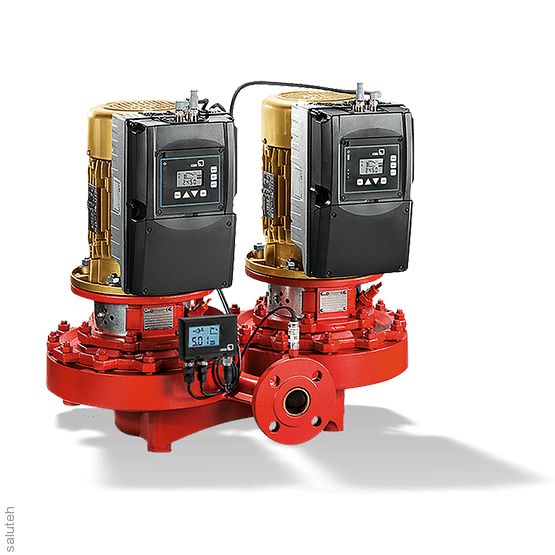

Twin pumps in "In-line" design and standard 3-phase motors with a frequency converter mounted on the motor for smooth speed control. Applications: heating systems, technical water supply, air conditioning, water supply, coolant circulation, industrial recycling systems.
Overview of technical data
| Q (50Hz) | 0.0 – 1095.0 (m³/h) |
| H (50Hz) | 0.0 – 38.5 (m) |
| Type of bearing | ball bearing |
| Drive | electric motor |
| Drive motor frequency | 50 Hz /60 Hz |
| Type of drive | electric motor |
| Drive motor voltage | low voltage |
| Electrical connector | 400 V, 3~ |
| Type of installation | execution of the "in-line" type |
| Type of lubricant | grease |
| Max. permissible liquid temperature | 140 (°C) |
| The position of the nozzle | execution of the "in-line" type |
| Maximum operating pressure | PN 16 |
| Built-in control system | yes |
| Suction characteristics | non-self-priming |
| Acceptable for drinking water | yes |
| Housing type | spiral body |
| Type of connection | the flange |
| UNSPSC classification | 4515150300 |
| Installation position | horizontal or vertical |
| Max. working pressure from the pressure sides | 16 (bar) |
| Max. drive power | 45 (kW) |
Features
Brand
KSB
