Main application areas
- Raw water
- Biofuels
- Water
- Water disposal
- Water treatment
- Water supply
- Urban wastewater
- Pumps used as turbines
- Desalination of seawater
- Equipment for buildings
- Processing of suspended solids
- Irrigation
- Sprinkling irrigation, irrigation
- Cooling water and condensate
- Pressure increase
- Fire fighting and sprinkler installations
- Food products
- Industry and technological process
- Industrial effluents
- Industrial power plants
- Water distribution
- System solutions, rehabilitation
- Steel
- Waste water
- Types of orders
- Water transportation
- Chemistry
- Energy industry

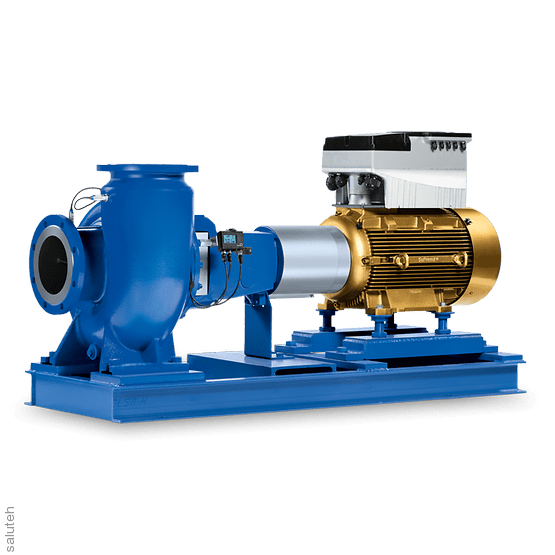

Horizontal pump with spiral body, single-stage
(standard sizes 125-500/2 two-stage), with a spacer coupling, in a process design, with replaceable shaft bushings /protective shaft bushings and slot rings of the housing. Scope of application: for sprinkling, irrigation, drainage, centralized heat supply networks, water supply, fire extinguishing, heating and air conditioning installations
air, condensate pumping, for swimming pool water, for pumping hot and cold water, fire extinguishing water, oils, brines, drinking water, brackish water, household water, etc.
Overview of technical data
| Q (50Hz) | 50.0 – 2280.0 (m³/h) |
| H (50Hz) | 2.5 – 90.0 (m) |
| Type of bearing | ball bearing |
| Separation of the body | transverse (radial) |
| Drive motor frequency | 50 Hz /60 Hz |
| Type of drive | electric motor, turbine |
| Drive motor voltage | low voltage |
| Number of impeller inputs | single-threaded |
| Impeller material (according to E standard | JL 1040, 1.4408, GJL-250, G-CUSN10 |
| Type of installation | base plate |
| Type of coupling | directly |
| Type of lubricant | grease/grease with a pumped medium |
| Max. permissible liquid temperature | 140 (°C) |
| The position of the nozzle | mechanical suction |
| Maximum operating pressure | PN 16 |
| Process execution | yes |
| Installation of the unit | "dry" installation |
| Shaft material (according to EN standard) | C45, 1.4057 |
| Suction characteristics | non-self-priming |
| Housing type | spiral body |
| Type of impeller | radial, multi-channel impeller, closed, closed/radial |
| Type of connection | the flange |
| Housing material (according to EN standard) | JL 1040, JS 1025 |
| eClass | 36410000, 36410100, 36410101 |
| Installation position | horizontal |
| Type of shaft seal | stuffing box, mechanical seal |
| Main application areas | Water supply, Building engineering equipment, Energy, Wastewater, Industry and technological processes |
| Housing material | cast iron with spherical graphite, grey cast iron |
| Max. working pressure from the pressure sides | 16 (bar) |
| Type of installation | stationary |
| Max. rotation speed | 1750 (1/min) |
Features
Brand
KSB
