Main application areas
- Urban wastewater
- Processing of suspended solids
- Surface reversal
- General methods
- Food products
- Industry and technological process
- Industrial effluents
- Waste water
- Types of orders

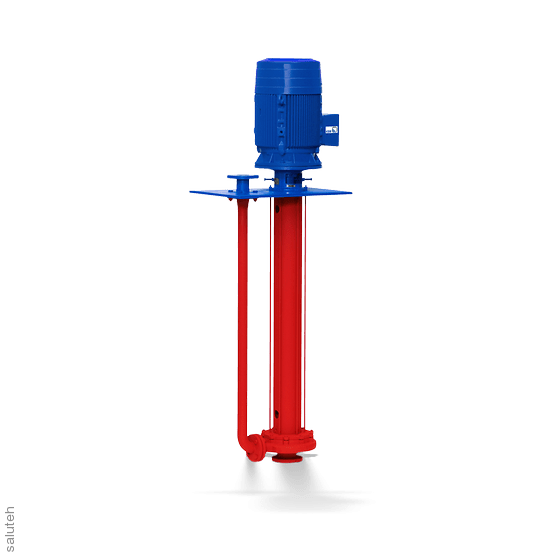

Single-stage pump with spiral housing for vertical installation in a closed, atmospheric pressure tank, performance complies with EN 733. Scope of application: for pumping neutral degreasing and
phosphating solutions, rinsing water with degreasing agents, varnishes for dipping, etc. Code: EN.
Overview of technical data
| Q (50Hz) | 3.0 – 740.0 (m³/h) |
| H (50Hz) | 1.5 – 100.0 (m) |
| Type of bearing | rolling bearing |
| Separation of the body | transverse (radial) |
| Drive motor frequency | 50 Hz /60 Hz |
| Type of drive | electric motor |
| Drive motor voltage | low voltage |
| Number of impeller inputs | single-threaded |
| Max. diving depth | 2000 (mm) |
| Impeller material (according to E standard | 1.4408 /A743 GR CF8 M, EN-GJL-250 /A 48 CL 35B |
| Type of coupling | directly |
| Type of lubricant | grease |
| Max. permissible liquid temperature | 95 (°C) |
| The position of the nozzle | variable |
| Maximum operating pressure | PN 10, PN 16 |
| Installation of the unit | "wet" installation |
| Shaft material (according to EN standard) | 1.4462, C45+N |
| Standard | IN 733 |
| Suction characteristics | non-self-priming |
| Third plate | yes |
| Housing type | spiral body |
| Type of impeller | radial, closed |
| Type of connection | the flange |
| Housing material (according to EN standard) | 1.4408 /A743GR CF8 M, EN-GJL-250 /A 48 CL 35B |
| eClass | 36410101, 03641000, 36410100 |
| Installation position | vertical |
| Type of shaft seal | shaft sealing ring |
| Main application areas | Industry and technological processes, wastewater |
| Housing material | grey cast iron, stainless steel |
| Max. working pressure from the pressure sides | 10 (bar) |
| Max. drive power | 90 (kW) |
| Type of installation | stationary |
| Max. rotation speed | 3500 (1/min) |
Features
Brand
KSB
