Main application areas
- Urban wastewater
- Equipment for buildings
- Cooling water and condensate
- Industry and technological process
- Industrial power plants
- Water distribution
- Steel
- Waste water
- Energy industry
- heating /air conditioning /ventilation

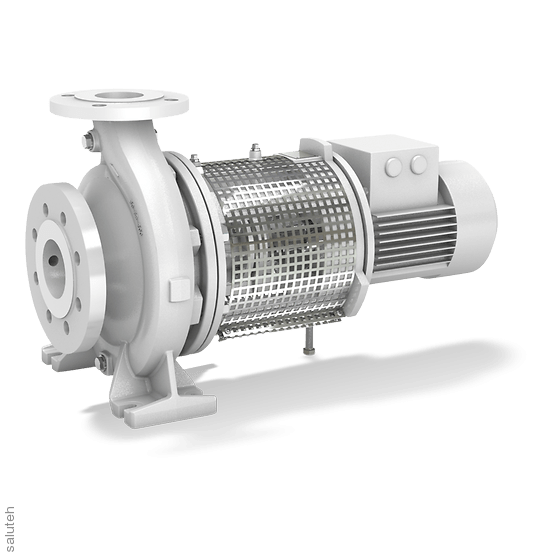

A single-stage pump with a spiral casing with fan cooling, monoblock, with a standard electric motor. Scope of application: in installations for heat transfer (DIN 4754, VDI 3033) or for hot water circulation. Code: EB SY
Overview of technical data
| Q (50Hz) | 1.5 – 337.0 (m³/h) |
| H (50Hz) | 2.0 – 99.0 (m) |
| Type of bearing | slide underpin |
| Separation of the body | transverse (radial) |
| Drive motor frequency | 50 Hz /60 Hz |
| Type of drive | electric motor |
| Drive motor voltage | low voltage |
| Explosion protection | IP55 |
| Explosion protection | IP55 |
| Number of impeller inputs | single-threaded |
| Impeller material (according to E standard | JL 1040 /A48CL35 |
| Type of installation | block |
| Type of coupling | directly |
| Type of lubricant | lubrication of the pumped medium |
| Max. permissible liquid temperature | 350 (°C) |
| The position of the nozzle | mechanical suction |
| Maximum operating pressure | PN 16 |
| Process execution | yes |
| Installation of the unit | "dry" installation |
| Shaft material (according to EN standard) | 1.4021 + QTHRC55 |
| Suction characteristics | non-self-priming |
| Housing type | spiral body |
| Type of impeller | closed/radial |
| Type of connection | the flange |
| UNSPSC classification | 4015150300 |
| Housing material (according to EN standard) | JS 1030 /A536 GR 60-40-18 |
| eClass | 36410000, 36410100, 36410101 |
| Installation position | horizontal or vertical |
| Type of shaft seal | mechanical seal |
| Main application areas | Industry and technological processes, Energy, Building engineering equipment, Oil /Gas |
| Housing material | cast iron with spherical graphite |
| Max. working pressure from the pressure sides | 16 (bar) |
| Type of installation | stationary |
| Max. rotation speed | 3500 (1/min) |
