Main application areas
- Urban wastewater
- Drainage
- Cooling water and condensate
- Industry and technological process
- Industrial effluents
- Industrial power plants
- Process
- Prefabricated reservoirs in case of floods /Liv
- Special technologies
- Waste water
- Heat carriers, cooling circuits
- Transportation of wastewater
- Chemistry
- Public power plants
- Energy industry

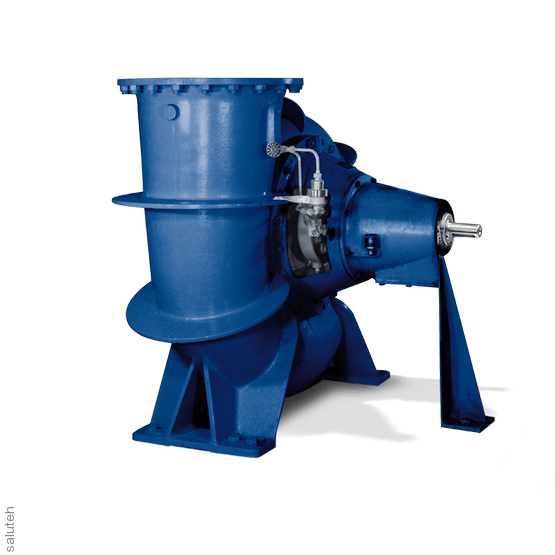

A single-stage pump with a spiral casing, with an elongated coupling (mounted on a base plate), in a process design. Applications: irrigation, drainage, water supply, pumping of condensate, cooling and process water, etc.
Overview of technical data
| Q (50Hz) | 500.0 – 21600.0 (m³/h) |
| H (50Hz) | 5.0 – 50.0 (m) |
| Type of bearing | ball bearing |
| Separation of the body | transverse (radial) |
| Drive motor frequency | 50 Hz /60 Hz |
| Type of drive | electric motor |
| Drive motor voltage | low voltage, high voltage |
| Number of impeller inputs | single-threaded |
| Type of installation | base plate |
| Type of coupling | gearbox, directly |
| Type of lubricant | grease/oil lubrication |
| Max. permissible liquid temperature | 105 (°C) |
| The position of the nozzle | mechanical suction |
| Maximum operating pressure | PN 10 |
| Process execution | yes |
| Installation of the unit | "dry" installation |
| Suction characteristics | non-self-priming |
| Housing type | spiral body |
| Type of impeller | diagonal impeller, closed, multi-channel impeller |
| Type of connection | the flange |
| eClass | 36410100, 36410000, 36410101 |
| Installation position | horizontal or vertical |
| Type of shaft seal | stuffing box, mechanical seal |
| Main application areas | Industry and technological processes, Energy, Water supply |
| Housing material | grey cast iron, stainless steel casting, duplex steel casting, Ni-resist |
| Max. working pressure from the pressure sides | 10 (bar) |
| Max. drive power | 1200 (kW) |
| Type of installation | stationary |
| Max. rotation speed | 1480 (1/min) |
Features
Brand
KSB
