Main application areas
- Raw water
- Water
- Water intake
- Water disposal
- Water treatment
- Water supply
- Mining
- Urban wastewater
- Drainage pumping stations
- Pumps used as turbines
- Petrochemical industry
- Oil /Gas
- Dewatering by pressing
- Desalination of seawater
- Equipment for buildings
- Lake water, water lifting dam
- Irrigation
- Cooling water and condensate
- Pressure increase
- Pressure increase, fire extinguishing installations
- Fire fighting and sprinkler installations
- Industry and technological process
- Industrial power plants
- Process
- Water distribution
- Prefabricated reservoirs in case of floods /Liv
- System solutions, rehabilitation
- Special technologies
- Steel
- Waste water
- Heat from a centralized heating system
- Heat carriers, cooling circuits
- Water transportation
- Transportation of wastewater
- Chemistry
- Public power plants
- Energy industry\

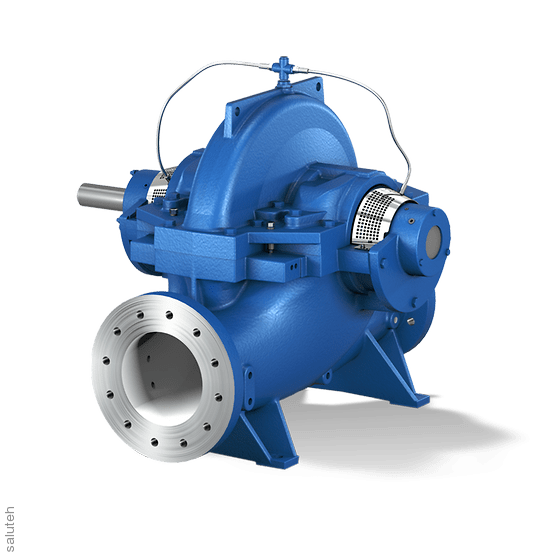

Horizontally or vertically mounted single-stage pump with a spiral body having a longitudinal connector, with a radial impeller of double suction, connecting flanges according to DIN, ISO, BS or ANSI. Scope of application: for pumping untreated, clean and industrial water, as well as seawater in hydraulic structures, water supply and drainage pumping stations, power plants, fire extinguishing systems, marine equipment and petrochemicals.
Overview of technical data
| Q (50Hz) | 50.0 – 2880.0 (m³/h) |
| H (50Hz) | 7.0 – 210.0 (m) |
| Type of bearing | rolling bearing and sliding underpin |
| Separation of the body | longitudinal (axial) |
| Drive motor frequency | 50 Hz /60 Hz |
| Type of drive | electric motor |
| Drive motor voltage | low voltage, high voltage |
| Number of impeller inputs | two-threaded |
| Impeller material (according to E standard | BRONZE, CHROMSTAHL, DUPLEXSTAHLGUSS, SUPER DUPLEX |
| Type of installation | base plate |
| Type of coupling | directly, the gearbox |
| Type of lubricant | grease/grease with a pumped medium |
| Max. permissible liquid temperature | 80 (°C) |
| The position of the nozzle | execution of the "in-line" type |
| Maximum operating pressure | PN 10, PN 16, PN 25 |
| Installation of the unit | "dry" installation |
| Shaft material (according to EN standard) | 13% CHROME STEEL, DUPLEX STEEL |
| Suction characteristics | non-self-priming |
| Acceptable for drinking water | yes |
| Housing type | spiral body |
| Type of impeller | closed, radial |
| Type of connection | the flange |
| Housing material (according to EN standard) | GREY CAST IRON |
| eClass | 36410103, 36410100, 36410101, 36410000 |
| Installation position | horizontal or vertical |
| Type of shaft seal | stuffing box, mechanical seal |
| Main application areas | Industry and technological processes, Water supply, Energy, Building engineering equipment, Mining /Dredging |
| Housing material | grey cast iron, duplex steel, duplex steel casting, cast iron with spherical graphite |
| Max. working pressure from the pressure sides | 25 (bar) |
| Max. drive power | 1500 (kW) |
| Type of installation | 00 |
| Max. rotation speed | 3500 (1/min) |
Features
Brand
KSB
