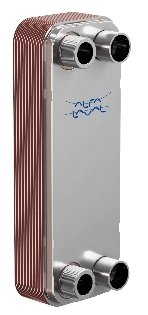

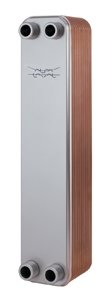

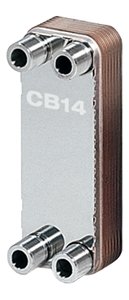

Brazed plate heat exchanger Alfa Laval CB14-300

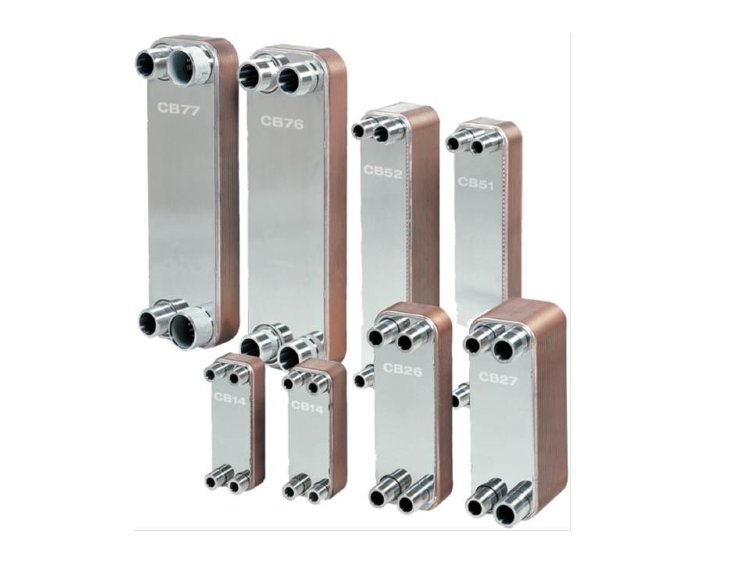

Alfa Laval brazed plate heat exchangers Alfa Laval CB14, CB20, CB27, CB51-DW, CB52, CB76, CB77, CB100, CB200, CBH200, CB300, AC10, AC30, AC50, AC70, AC80, AC120, AC130, AC250, AC350, AC500

The working media involved in the heat transfer process are introduced into the heat exchanger through the nozzles. The channels formed between the plates and the corner holes are arranged in such a way that the two working media move in opposite directions. The working media remains in the heat exchanger due to the adhesive seal located around the edge of the plates. The channels formed between the plates and the corner holes are arranged in such a way that the two working media move in opposite directions.

Standard materials
