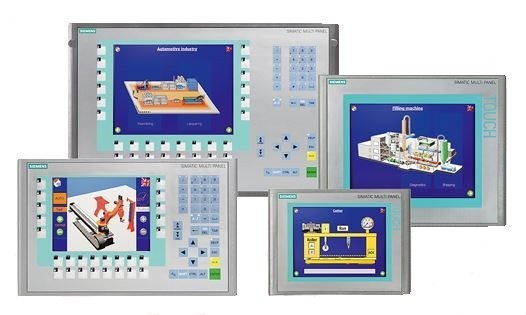

Control panel 6AV6643-0CD01-1AX1

Control and control panels SIEMENS The Simatic MP 277 series (6AV6643-0CD01-1AX0), have found their wide application in tasks for solving automatic (system) control and monitoring, in almost any industrial production sectors. An additional advantage of multifunctional panels is their quick start-up and ready to work immediately after power is turned on. As a rule, control panels of the Simatic MP 277 series (6AV6643-0CD01-1AX0) can be equipped with both a touch screen and a special (membrane) keyboard.

You can buy brand control and control panels SIEMENS Simatic MP 277 series (6AV6643-0CD01-1AX0) in our company, please contact our engineers by phone or e-mail regarding the selection.

Technical characteristics of MP 277 series control and monitoring panels (6AV6643-0CB01-1AX0):

• Screen Type: Graphic LCD (TFT);
• Screen diagonal: 10.4 inches;
• Number of colors: up to 65536;
• Screen Resolution: 640 x 480 dpi;
• Screen life: up to 50,000 hours;
• Type (device) of data entry: touch panel;
• Touch Screen Type: analog/resistive;
• Supply voltage: up to 24 V;
• Number of switchable languages: up to 16;
• Number of supported languages: up to 22;
• Protection classes: IP20 (rear panel), IP65 (front panel);
• Operating temperature range: up to 50 °C;
• Temperature regime for transportation: -20 to 60 °C;
• Dimensions of the front panel: 325 x 263 mm;
• Installation dimensions: 310 x 248 x 61 mm;
• Weight: up to 2.65 kg.
