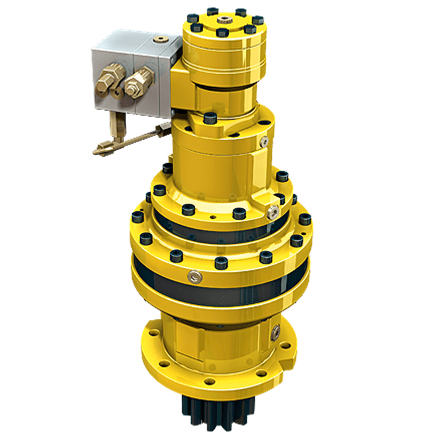

Dinamic Oil rotary gearboxes in two-stage and three-stage versions have a torque range of up to 160,000 Nm in the standard range, and higher values are also available on request.
An ideal offer for equipping crane and manipulator equipment of a wide variety of profile types.
Compact design of the structure optimized for operation with large radial loads. Twelve overall dimensions to choose from, the output gearboxes can have gears or a solid shaft (slotted or cylindrical).
A wide range of accessories and accessories, including brake assemblies.
Technical characteristics of Dinamic Oil rotary gearboxes of the RE-2 /RE-3 series
- Nominal torque: from 3,000 Nm to 160,000 Nm (up to 2,000,000 Nm on request);
- Transmission ratio: from 12.53 to 332.31;
- Number of gears: 2, 3.
Parameters of standard sizes of Dinamic Oil rotary gearboxes of the RE-2 /RE-3 series
Type of gearbox | Gear ratio number | Moment, Nm |
RE240 DBS, RE240 T4 | 13,29 - 281,42 | 2409 - 4352 |
RE310 NR, RE310 T, RE310 T6, RE310 T8, RE310 T9 | 12,53 - 321,41 | 3113 - 4824 |
RE510 NR, RE510 T, RE510 T6, RE510 T8, RE510 T9, RE510 T18, RE510 DBS | 12,53 - 321,41 | 4878 - 9946 |
RE610 T18, RE610 DBS | 14,40 - 245,45 | 8148 - 12838 |
RE810 TR | 12,83 - 314,47 | 8140 - 14970 |
RE1020 DBS, RE1020 DBT, RE1020 Z, RE1020 Z1 | 12,83 - 314,47 | 11775 - 24124 |
RE1520 DBS, RE1520 DBT, RE1520 Z | 14,73 - 278,14 | 19319 - 33651 |
RE2520 Z, RE2520 Z1 | 14,25 - 321,43 | 31354 - 54046 |
RE3510 T, RE3510 Z2, RE3510 HR | 13,68 - 332,31 | 44402 - 75579 |
RE4800 DBS1 | 13,17 - 241,90 | 70976 - 105241 |
RE6000 Z1, RE6000 Z4 | 14,20 - 252,34 | 67526 - 116657 |
RE8000 Z4 | 14,50 - 200,00 | 122265 - 166208 |
To buy Dinamic Oil rotary gearboxes of the RE-2 /RE-3 series, you can find out the price and more information about the product by contacting our specialists.
