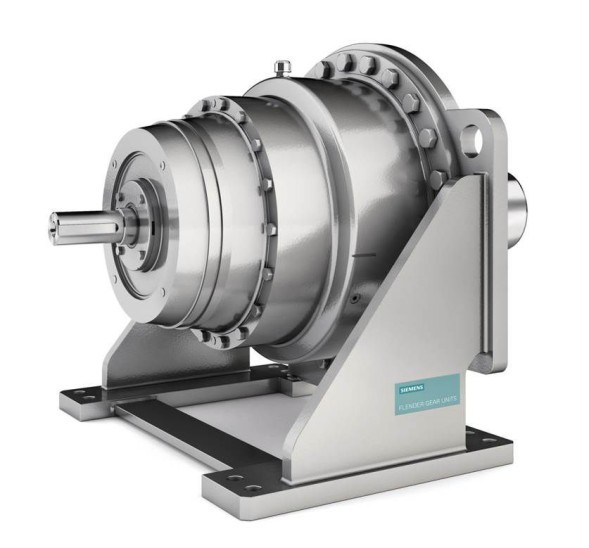

Industrial planetary gearboxes FLENDER series SIP they represent a favorable ratio of a high level of performance and price. The modular concept of the architecture makes it possible to adapt the transfer device as much as possible to the installation features of the production drive. Thus, this basic solution can implement all the necessary requirements not only for general industrial applications, but also for specialized industries. The widest range of set gear ratios in a compact package, high-speed operation, reliable, energy-efficient and practical solution for your project.
Design variants of SIG gearboxes
Variations of performance according to the nature of the functions performed:
HSS - high-speed shaft, coaxial or angular arrangement
LSS - low-speed shaft, coaxial or angular arrangement
Five types of Input shafts (LSS): solid with keyway connection, hollow with keyway, hollow for shrink washer, hollow and solid with slot connection.
The model range includes 8 standard sizes.
Various mounting positioning options, horizontal and vertical, with side mounting.The SIP series gearboxes are compatible with any models of the SIMOGEAR 4-pole electric motor line, according to individual requirements, the number of poles can be changed to adjust the operating parameters. A wide range of optional components and accessories are available.
Technical characteristics of FLENDER SIP planetary gearboxes and gear motors
- Rated torque: from 10,000 to 80,000 Nm;
- Transmission ratio: from 25 to 14,497;
- Number of gears: from 2 to 5;
- Overall size: 30, 35, 37, 40 , 45, 50, 55, 60;
- Overall size of the engine: from 63 to 280;
- Housing protection: IP 54.
To buy FLENDER SIP series planetary gearboxes and gear motors, you can find out the price and more information about the product by contacting our specialists.
