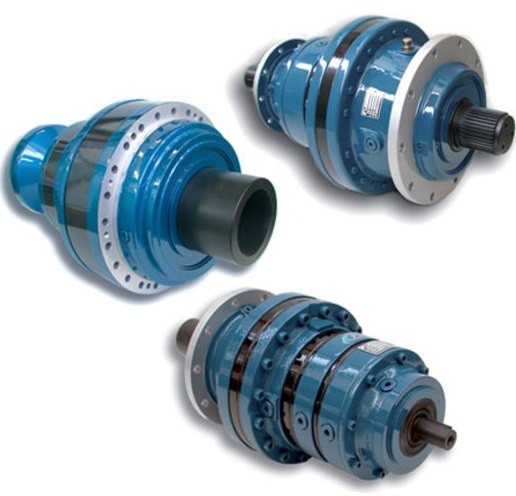

Coaxial planetary gearboxes Haumea series PG They are represented by an extensive range of models of various configurations, a total of twenty-one standard sizes with variations of up to five gears provide the maximum choice of performance characteristics for fine-tuning the drive mode. A popular offer for use in such fields of activity as the chemical industry, earthmoving plants, lifting equipment, the food industry, mobile equipment, machine tools of various profiles, etc.
The gearboxes of this series have a very practical modular design, which allows you to easily select the necessary components for the perfect coupling of the connecting nodes of the electric motor or hydraulic motor and the slave device, as well as attributes for easy and simple installation in the desired position. In addition, these high-power mechanical units have very compact dimensions.
Technical characteristics of Haumea PG series planetary gearboxes
- Gear ratio: 3,43 - 8938,38;
- Nominal torque: 450 - 858100 Nm;
- Number of steps: 1, 2, 3, 4, 5;
- Max. speed (at the entrance): up to 2800 rpm;
- Mounting design: B3, B5, B4, B6, B7, V1, V2, V3, V4.
Standard sizes of Haumea PG series gearboxes
Type of gearbox | Moment, Nm | Gear ratio number |
PG 101, PG 102, PG 103, PG 104 | 450 - 1100 | 3,56 - 3422,25 |
PG 161, PG 162, PG 163, PG 164 | 1000 - 1700 | 3,56 - 3422,25 |
PG 251, PG 252, PG 253, PG 254 | 1730 - 3520 | 3,78 - 2369,25 |
PG 501, PG 502 PG 503 PG 504 | 2610 - 5110 | 3,78 - 1735,07 |
PG 701, PG702, PG703, PG704 | 3850 - 7020 | 3,67 - 2722,78 |
PG 1001, PG 1002, PG 1003, PG 1004 | 4410 - 12210 | 3,56 - 2229,71 |
PG 1601, PG 1602, PG 1603, PG 1604 | 9130 - 18020 | 3,56 - 2229,71 |
PG 1802, PG 1803, PG 1804 | 12010 - 18020 | 13,04 - 1561,86 |
PG 2501, PG 2502, PG 2503, PG 2504 | 16910 - 30760 | 4,00 - 2277,71 |
PG 3002, PG 3003, PG 3004 | 23510 - 30760 | 14,22 - 1425,06 |
PG 3501, PG 3502, PG 3503, PG 3504 | 21650 - 37750 | 4,00 - 1289,65 |
PG 5001, PG 5002, PG 5003, PG 5004 | 35500 - 60800 | 3,95 - 1981,97 |
PG 6501, PG 6502, PG 6503, PG 6504 | 52670 - 69310 | 3,83 - 1005,54 |
PG 9001, PG 9002, PG 9003, PG 9004, PG 9005 | 65490 - 99000 | 4,04 - 8360,53 |
PG 12001, PG 12002, PG 12003, PG 12004, PG 12005 | 94300 - 163400 | 4,09 - 5665,81 |
PG 16001, PG 16002, PG 16003, PG 16004, PG 16005 | 116700 - 212500 | 3,83 - 8729,66 |
PG 21001, PG 21002, PG 21003, PG 21004, PG 21005 | 114200 - 238200 | 3,68 - 8127,84 |
PG 26001, PG 26002, PG 26003, PG 26004, PG 26005 | 185900 - 288700 | 3,68 - 8018,87 |
PG 31001, PG 31002, PG 31003, PG 31004, PG 31005 | 128400 - 364400 | 3,43 - 8522,08 |
PG 40001, PG 40002, PG 40003, PG 40004, PG 40005 | 262200 - 452700 | 3,43 - 8938,38 |
PG 45001, PG 45002, PG 45003, PG 45004, PG 45005 | 305800 - 567400 | 3,83 - 4852,48 |
PG 53001, PG 53002, PG 53003, PG 53004, PG 53005 | 394100 - 727200 | 3,84 - 7890,76 |
PG 61001, PG 61002, PG 61003, PG 61004, PG 61005 | 448600 - 858100 | 3,84 - 3175,35 |
You can buy Haumea PG series planetary gearboxes, find out the price and more information about the product by contacting our specialists.
