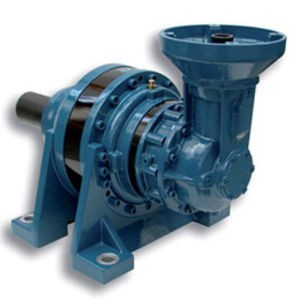

Haumea Angular Planetary Gearboxes series PGA They are represented by an extensive range of models of various configurations, a total of twenty-one standard sizes with variations of up to five gears provide the maximum choice of performance characteristics for fine-tuning the drive mode. A popular offer for use in such fields of activity as the chemical industry, earthmoving plants, lifting equipment, the food industry, mobile equipment, machine tools of various profiles, etc.
The gearboxes of this series have a very practical modular design, which allows you to easily select the necessary components for the perfect coupling of the connecting nodes of the electric motor or hydraulic motor and the slave device, as well as attributes for easy and simple installation in the required position. In addition, these high-power mechanical units have very compact dimensions.
Technical characteristics of Haumea PGA series planetary bevel gearboxes
- Gear ratio: 10,40 - 7897,21;
- Nominal torque: 700 - 463500 Nm;
- Number of steps: 2, 3, 4, 5;
- Max. speed (at the entrance): up to 2800 rpm;
- Mounting design: B51, B53, B54, B55, B56, B57, B58, B59, B60, B61, B62, B63, V15, V16, V17, V18, V35, V36, V37, V38, V40, V41, V42, V43, V44, V45, V46, V47, V48, V49, V50, V51, V52, V53, V54, V55.
Standard sizes of Haumea orthogonal gearboxes of the PGA series
Type of gearbox | Moment, Nm | Gear ratio number |
PGA 102, PGA 103, PGA 104 | 700 - 1100 | 10,41 - 1484,79 |
PGA 162, PGA 163, PGA 164 | 1000 - 1700 | 10,40 - 1484,79 |
PGA 252, PGA 253, PGA 254 | 1690 - 3340 | 12,08 - 1319,81 |
PGA 502 PGA 503 PGA 504 | 2610 - 5110 | 13,05 - 1242,08 |
PGA 702, PGA 703, PGA 704 | 3850 - 7020 | 12,67 - 1067,27 |
PGA 1002, PGA1003, PGA 1004 | 4500 - 12210 | 12,28 - 967,39 |
PGA 1602, PGA 1603, PGA 1604 | 9130 - 18020 | 10,92 - 967,39 |
PGA 1803, PGA 1804 | 12390 - 18020 | 45,04 - 1184,17 |
PGA 2502, PGA 2503, PGA 2504 | 16910 - 24550 | 12,29 - 1726,91 |
PGA 3002, PGA3003, PGA3004 | 23510 - 30760 | 43,68 - 1385,48 |
PGA 3502, PGA 3503, PGA 3504 | 16650 - 37110 | 12,29 - 1253,82 |
PGA 5002, PGA 5003, PGA 5004 | 20640 - 45190 | 12,15 - 1326,27 |
PGA 6503, PGA 6504 | 49570 - 69310 | 47,01 - 911,35 |
PGA 9003, PGA 9004, PGA 9005 | 59800 - 79000 | 49,68 - 1010,02 |
PGA 12003, PGA 12004, PGA 12005 | 55600 - 120800 | 50,25 - 5566,69 |
PGA 16002, PGA 16003, PGA 16004, PGA 16005 | 65600 - 146300 | 59,55 - 7033,95 |
PGA 21003, PGA 21004, PGA 21005 | 71800 - 181100 | 60,00 - 7897,21 |
PGA 26004, PGA 26005 | 155300 - 224200 | 182,81 - 6021,84 |
PGA 31004, PGA 31005 | 203900 - 309800 | 264,13 - 6399,72 |
PGA 40005 | 257000 - 338900 | 263,81 - 6279,06 |
PGA 45005 | 342600 - 444800 | 634,60 - 3187,80 |
PGA 53005 | 386500 - 463500 | 819,22 - 5079,11 |
PGA 61005 | 401000 - 463500 | 863,53 - 2116,90 |
You can buy Haumea PGA series angular planetary gearboxes, find out the price and more information about the product by contacting our specialists.
