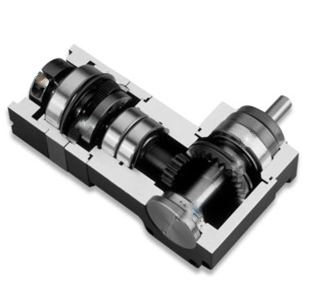

Orthogonal planetary gearboxes NemaTRUE 90 from the company Kollmorgen This is an economical and productive offer characterized by high accuracy and reliability in operation. The parameters regarding load resistance have been improved, and the universal RediMount mounting system has been installed for quick and easy docking with any servomotors. The easiest possible integration without unnecessary costs and structural elements.
The frame is made of anodized aluminum and is thus reliably protected from corrosion and has a relatively low weight. The gears are made of HRC 55-60 hardness steel, reinforced with tapered roller bearings to resist radial and axial loads in the support units. The model range consists of three dimensional types, available in a single-stage configuration.
Technical characteristics of Kollmorgen NemaTRUE 90 angular planetary gearboxes
- Gear ratio: 1 - 500;
- Number of steps: 1;
- Maximum torque: 20 - 255 Nm;
- Effectiveness: 98% (1-5P), 93 % (5 - 50), 88 % (60 - 500);
- Backlash: 13 arc minutes (1 - 5P), 15 arc minutes (5-500).
Standard sizes of Kollmorgen NemaTRUE 90 gearboxes
Type of gearbox | Ratio reductions | Max. moment, Nm |
NTR23-001 | 1 | 22 |
NTR23-002 | 2 | 41 |
NTR23-003 | 3 | 31 |
NTR23-004 | 4 | 27 |
NTR23-005P | 5P | 20 |
NTR23-005T | 5T | 41 |
NTR23-006 | 6 | 41 |
NTR23-009 | 9 | 33 |
NTR23-010 | 10 | 41 |
NTR23-012 | 12 | 28 |
NTR23-015 | 15 | 34 |
NTR23-020 | 20 | 41 |
NTR23-025 | 25 | 22 |
NTR23-030 | 30 | 34 |
NTR23-040 | 40 | 30 |
NTR23-050 | 50 | 23 |
NTR23-060 | 60 | 41 |
NTR23-075 | 75 | 35 |
NTR23-090 | 90 | 35 |
NTR23-100 | 100 | 41 |
NTR23-120 | 120 | 31 |
NTR23-125 | 125 | 23 |
NTR23-150 | 150 | 36 |
NTR23-200 | 200 | 41 |
NTR23-250 | 250 | 23 |
NTR23-300 | 300 | 36 |
NTR23-400 | 400 | 31 |
NTR23-500 | 500 | 23 |
NTR34-001 | 1 | 56 |
NTR34-002 | 2 | 126 |
NTR34-003 | 3 | 102 |
NTR34-004 | 4 | 79 |
NTR34-005P | 5P | 66 |
NTR34-005T | 5T | 126 |
NTR34-006 | 6 | 126 |
NTR34-009 | 9 | 111 |
NTR34-010 | 10 | 126 |
NTR34-012 | 12 | 85 |
NTR34-015 | 15 | 115 |
NTR34-020 | 20 | 126 |
NTR34-025 | 25 | 72 |
NTR34-030 | 30 | 118 |
NTR34-040 | 40 | 89 |
NTR34-050 | 50 | 74 |
NTR34-060 | 60 | 126 |
NTR34-075 | 75 | 122 |
NTR34-090 | 90 | 123 |
NTR34-100 | 100 | 126 |
NTR34-120 | 120 | 92 |
NTR34-125 | 125 | 75 |
NTR34-150 | 150 | 124 |
NTR34-200 | 200 | 126 |
NTR34-250 | 250 | 76 |
NTR34-300 | 300 | 125 |
NTR34-400 | 400 | 94 |
NTR34-500 | 500 | 77 |
NTR42-001 | 1 | 183 |
NTR42-002 | 2 | 255 |
NTR42-003 | 3 | 230 |
NTR42-004 | 4 | 179 |
NTR42-005P | 5P | 147 |
NTR42-005T | 5T | 255 |
NTR42-006 | 6 | 255 |
NTR42-009 | 9 | 253 |
NTR42-010 | 10 | 255 |
NTR42-012 | 12 | 195 |
NTR42-015 | 15 | 255 |
NTR42-020 | 20 | 255 |
NTR42-025 | 25 | 165 |
NTR42-030 | 30 | 255 |
NTR42-040 | 40 | 207 |
NTR42-050 | 50 | 169 |
NTR42-060 | 60 | 255 |
NTR42-075 | 75 | 255 |
NTR42-090 | 90 | 255 |
NTR42-100 | 100 | 255 |
NTR42-120 | 120 | 214 |
NTR42-125 | 125 | 174 |
NTR42-150 | 150 | 255 |
NTR42-200 | 200 | 255 |
NTR42-250 | 250 | 176 |
NTR42-300 | 300 | 255 |
NTR42-400 | 400 | 220 |
NTR42-500 | 500 | 178 |
You can buy Kollmorgen NemaTRUE 90 angular planetary gearboxes, find out the price and more information about the product by contacting our specialists.
