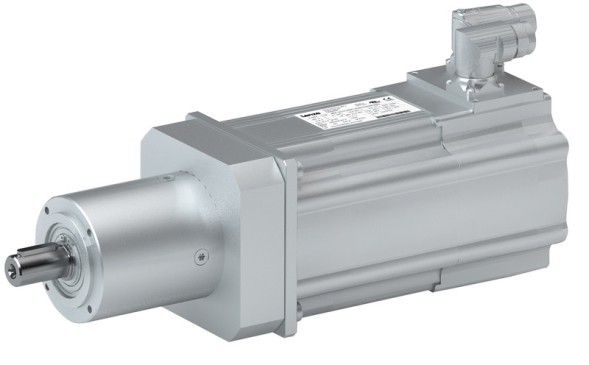

Industrial Planetary Gearboxes g700-P from Schilke They are a compact and at the same time powerful combination of transmission three-stage boxes and Synchronous (MCS) or asynchronous (MCA) servo motor The ideal solution for high-precision and dynamic applications with medium backlash. The model range is represented by 5 standard sizes with flange diameters of 40, 60, 80, 115 and 160 mm, which contain the widest range of reduction parameters.
The design flexibility and adaptability of this series makes it easy and simple to integrate the equipment into various production operations. The gearbox does not require special maintenance, and its lubricants do not require replacement. The motor housing is cooled by force or by self-ventilation. Feedback via encoders or resolvers. KTY or PTC temperature sensors are installed.
Technical characteristics of Lenze g700-P servo gear motors
- Rated torque: 20 - 800 Nm;
- Gear ratio: 3 - 512, in 24 bands;
- Number of steps: 1, 2, 3;
- Maximum speed: up to 18,000 rpm;
- Degree of protection of the housing (motor): IP54, IP65;
- Degree of protection: self-ventilation or forced blowing;
- Operating temperature range: -20 .. °40 C.
Overall standard sizes of Lenze g700-P gear motors
Gearboxes: G700-P20, G700 - P 44, G700-P44, G700-P130, 700-P260, 700-P800
② : Mcs06c41, mcs06c60, mcs06f41, MCS06F60, MCS06I41, MCS06I60, MCS09L41, MCS09D41, MCS09L51, MCS09D60, MCS09F38, MCS09F60, MCS09H41, MCS09H60, MCS12H14, mcs12l17, mcs12d17, mcs12l20, mcs12h15, MCS12D20, MCS12D35, MCS12H34, MCS12L39, MCS12D41, MCS12H35, MCS12L41, MCS14D14, MCS14L14, MCS14H12, MCS14P11, mcs14p14, mcs14d15, mcs14h15, mcs14l15, MCS14H28, MCS14P26, MCS14L30, MCS14D30, MCS14H32, MCS14P32, MCS14D36, MCS14L32, MCS19F12, MCS19P12, MCS19J12, mcs19p14, mcs19j14, mcs19f14, mcs19j29, MCS19P29, MCS19F29, MCS19J30, MCS19F30, MCS19P30
Асинхронные серводвигатели: MCA10I40, MCA13I34, MCA13I41, MCA14L16, MCA14L20, MCA14L35, MCA14L41, MCA17N17, MCA17N23, MCA17N35, MCA17N41, MCA19S17, MCA19S23, MCA19S35, MCA19S42, MCA21X17, MCA21X25, MCA21X35, MCA21X42
You can buy Lenze g700-P series planetary gear motors, find out the price and more information about the product by contacting our specialists.
