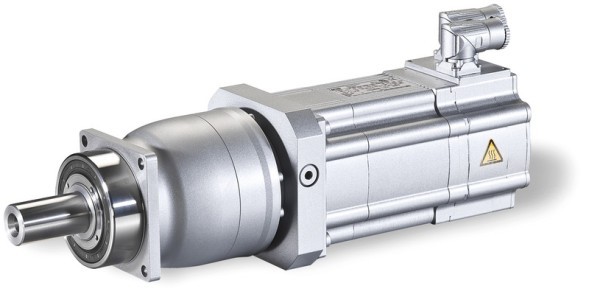

Industrial Planetary Gearboxes MPR/MPG from Schilke They are a compact and at the same time powerful combination of transmission two- stage boxes and Synchronous (MCS) or asynchronous (MCA) servo motor The ideal solution for high-precision and dynamic applications with low backlash (less than 1). The efficiency of their work reaches the level of more than 95-97 %. The model range is represented by 4 standard sizes with a solid (MPR) or with a flanged shaft (MPG), any mounting solutions can be chosen with the possibility of changing the position in the future.
The design flexibility and adaptability of this series makes it easy and simple to integrate the equipment into various production operations. The gearbox does not require special maintenance, and its lubricants do not require replacement. The motor housing is cooled by force or by self-ventilation, protected from dust and rain. Feedback via encoders or resolvers. KTY or PTC temperature sensors are installed.
Technical characteristics of Lenze MPR/MPG servo gear motors
- Rated torque: 0.25 - 387 Nm;
- Gear ratio: 3 - 100;
- Number of steps: 1, 2;
- Maximum speed: up to 1000 rpm;
- Degree of protection of the housing (motor): IP54, IP65;
- Degree of protection: self-ventilation or forced blowing;
- Operating temperature range: -20 .. °40 C.
Overall standard sizes of Lenze MPR/MPG gear motors
Gearboxes: MPR/MPG 050, MPR/MPG 100, MPR/MPG 200, MPR/MPG 300
② : Mcs06c41, mcs06c60, mcs06f41, MCS06F60, MCS06I41, MCS06I60, MCS09L41, MCS09D41, MCS09L51, MCS09D60, MCS09F38, MCS09F60, MCS09H41, MCS09H60, MCS12H14, mcs12l17, mcs12d17, mcs12l20, mcs12h15, MCS12D20, MCS12D35, MCS12H34, MCS12L39, MCS12D41, MCS12H35, MCS12L41, MCS14D14, MCS14L14, MCS14H12, MCS14P11, mcs14p14, mcs14d15, mcs14h15, mcs14l15, MCS14H28, MCS14P26, MCS14L30, MCS14D30, MCS14H32, MCS14P32, MCS14D36, MCS14L32, MCS19F12, MCS19P12, MCS19J12, mcs19p14, mcs19j14, mcs19f14, mcs19j29, MCS19P29, MCS19F29, MCS19J30, MCS19F30, MCS19P30
Асинхронные серводвигатели: MCA10I40, MCA13I34, MCA13I41, MCA14L16, MCA14L20, MCA14L35, MCA14L41, MCA17N17, MCA17N23, MCA17N35, MCA17N41, MCA19S17, MCA19S23, MCA19S35, MCA19S42, MCA21X17, MCA21X25, MCA21X35, MCA21X42
You can buy Lenze MPR/MPG series planetary gear motors, find out the price and more information about the product by contacting our specialists.
