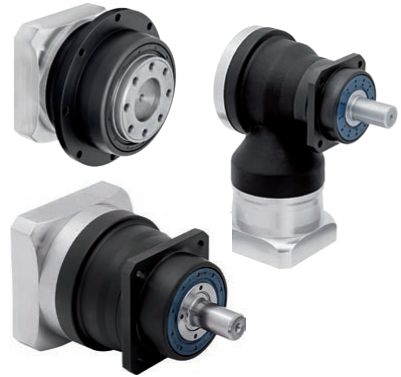

Planetary gearboxes of the family BPx from the company Baumuller They are able to cover a wide range of performance requirements for servo applications.
The range of reduction coefficients ideally corresponds to the presented range of electric motors of this brand, which significantly increases the choice and adaptability of technological solutions.
The model range of BPx gearboxes is formed by three main types of configurations:
- precision series BPN for high-precision applications, standard, angular (BPNA) and flanged (BPNF) version versions, an excellent addition to the DS, DSD and DSC motors;
- economical series BPE for simpler tasks with lower performance requirements (speed, torque), a standard, angular (BPEA) and flanged (BPEF) version of the execution;
- high-speed series BPV suitable for high torque values, resistant to radial and axial loads, excellent for DSP- and DSC servo motors, standard and flanged (BPVF) variation.
Technical characteristics of Baumuller gearboxes of BPN, BPE, BPV series
- Rated torque: 3 - 1800 Nm;
- Max. operating speed (for motor): up to 14,000 rpm;
- Reduction coefficient: 3 - 950.
Standard sizes of Baumuller gearboxes of BPN, BPE, BPV series
Type of gearbox | Coef-t reductions | Moment (output), Nm | Max. speed (at the entrance), rpm |
high-precision | |||
BPN 35 | 3 - 100 | 27 - 77 | 14000 |
BPN 45 | 3 - 100 | 60 - 150 | 10000 |
BPN 56 | 3 - 100 | 125 - 300 | 8500 |
BPN 71 | 3 - 100 | 305 - 1000 | 6500 |
BPN 95 | 3 - 100 | 630 - 1800 | 6000 |
BPNA 35 | 4 - 100 | 22 - 77 | 16000 |
BPNA 45 | 4 - 100 | 40 - 150 | 16000 |
BPNA 56 | 4 - 100 | 75 - 300 | 14000 |
BPNA 71 | 4 - 100 | 160 - 800 | 9500 |
BPNF 32 | 4 - 100 | 27 - 77 | 14000 |
BPNF 45 | 4 - 100 | 60 - 150 | 14000 |
BPNF 56 | 4 - 100 | 125 - 300 | 10000 |
BPNF 71 | 4 - 100 | 305 - 1000 | 8500 |
BPNF 100 | 4 - 100 | 630 - 1800 | 6500 |
economical | |||
BPE 20 | 3 - 512 | 5 - 20 | 18000 |
BPE 30 | 3 - 512 | 15 - 44 | 13000 |
BPE 30/35 | 3 - 512 | 15 - 44 | 13000 |
BPE 40 | 3 - 512 | 38 - 130 | 7000 |
BPE 40/45 | 3 - 512 | 38 - 130 | 7000 |
BPE 60 | 3 - 512 | 95 - 260 | 6500 |
BPE 60/56 | 3 - 512 | 95 - 260 | 6500 |
BPE 80 | 3 - 64 | 400 - 800 | 6500 |
BPEA 20 | 3 - 512 | 4 - 20 | 18000 |
BPEA 30 | 3 - 512 | 14 - 44 | 13000 |
BPEA 30/35 | 3 - 512 | 14 - 44 | 13000 |
BPEA 40 | 3 - 512 | 38 - 130 | 7000 |
BPEA 40/45 | 3 - 512 | 38 - 130 | 7000 |
BPEA 60/56 | 3 - 512 | 80 - 260 | 6500 |
BPEA 60 | 3 - 512 | 80 - 260 | 6500 |
BPEF 32 | 3 - 64 | 15 - 44 | 13000 |
BPEF 45 | 3 - 64 | 38 - 130 | 7000 |
BPEF 56 | 3 - 64 | 95 - 260 | 6500 |
high-speed | |||
BPV 35 | 3 - 100 | 40 | 14000 |
BPF 45 | 3 - 100 | 80 | 14000 |
BPV 56 | 3 - 100 | 180 | 10000 |
BPV 71 | 3 - 100 | 470 | 8500 |
BPV 95 | 3 - 100 | 950 | 6500 |
BPVF 32 | 4 - 100 | 40 | 14000 |
BPVF 45 | 4 - 100 | 80 | 14000 |
BPVF 56 | 4 - 100 | 180 | 10000 |
BPVF 71 | 4 - 100 | 470 | 8500 |
BPVF 100 | 4 - 100 | 950 | 6500 |
You can buy Baumuller BPN, BPE, BPV planetary gearboxes, find out the price and more information about the product by contacting our specialists.
