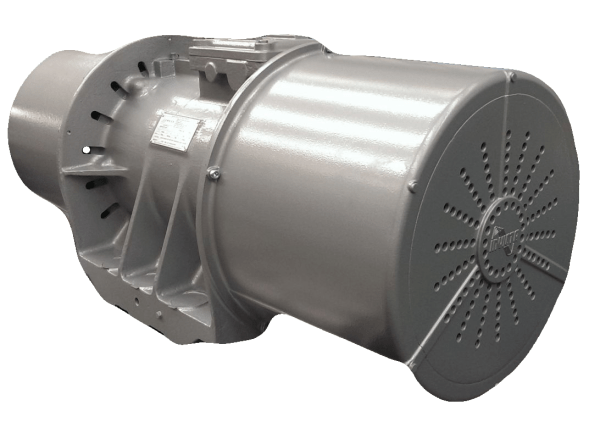

Electromechanical pad vibrators BLF from the company Invicta They are represented by a wide range of power solutions for performing various technological operations related to active vibration action. A popular offer for compacting building mixes, unloading bunkers, equipping vibrating tables, screens, transporting bulk materials, etc. Circular vibrations are generated by an electric motor due to the displacement of the center of gravity by eccentric loads.
The design of these vibrators includes axial ventilation units to ensure that acceptable heating levels are maintained at elevated ambient temperatures (50 °C). Impellers are installed at both ends of the shaft, the cooling flow is sucked through the imbalance covers and passes through the housing, the features of this process provide effective dispersion. Special inserts prevent dust from entering the support units.
Technical characteristics of Invicta BLF pad vibrators
- Centrifugal (driving) force: 34335 - 309015 N;
- Static moment: 474 - 7074 kg•cm ;
- Rated power: 3.3 - 12.5 kW;
- Power consumption: 3.7 - 15.4 kW;
- Supply voltage: 400 V AC;
- Rotation speed: 720 /960 /1440 rpm;
- Insulation class: F.
Standard sizes of Invicta BLF motor vibrators (4-pole version, 1440 rpm)
Type vibration motors | Centrifugal power, N | Static moment, kg·cm | Power, Tue |
BLF 50 -55/4 | 53955 | 474 | 3350 |
BLF 50 -65/4 | 63765 | 560 | 4800 |
BLF 50 -75/4 | 73575 | 647 | 4800 |
BLF 60 -95/4 | 93195 | 820 | 7750 |
BLF 60 -105/4 | 103000 | 906 | 7750 |
BLF 75 -130/4 | 127530 | 1122 | 10250 |
Standard sizes of Invicta BLF motor vibrators (6-pole version, 960 rpm)
Type vibration motors | Centrifugal power, N | Static moment, kg·cm | Power, Tue |
BLF 50 -60/6 | 58860 | 1164 | 4000 |
BLF 50 -75/6 | 73575 | 1455 | 4000 |
BLF 60 -90/6 | 88290 | 1746 | 6200 |
BLF 60 -105/6 | 103000 | 2037 | 6200 |
BLF 61 -105/6 | 103000 | 2037 | 6200 |
BLF 60 -125/6 | 122625 | 2425 | 10000 |
BLF 61 -125/6 | 122625 | 2425 | 10000 |
BLF 75 -150/6 | 147150 | 2910 | 10000 |
BLF 75 -185/6 | 181485 | 3589 | 10000 |
BLF 77 -185/6 | 181485 | 3589 | 10000 |
BLF 78 -165/6 | 161865 | 3201 | 10000 |
BLF 78 -185/6 | 181485 | 3589 | 10000 |
BLF 80 -230/6 | 225630 | 4462 | 12500 |
BLF 80 -270/6 | 264870 | 5238 | 12500 |
BLF 80 -315/6 | 309015 | 6111 | 12500 |
Standard sizes of Invicta BLF motor vibrators (8-pole version, 720 rpm)
Type vibration motors | Centrifugal power, N | Static moment, kg·cm | Power, Tue |
BLF 50 -35/8 | 34335 | 1207 | 3300 |
BLF 50 -45/8 | 44145 | 1552 | 3300 |
BLF 50 -55/8 | 53955 | 1897 | 3300 |
BLF 60 -65/8 | 63765 | 2242 | 4900 |
BLF 60 -90/8 | 88290 | 3105 | 4900 |
BLF 75 -124/8 | 121644 | 4279 | 7750 |
BLF 75 -135/8 | 132435 | 4658 | 7750 |
BLF 75 -150/8 | 147150 | 5174 | 7750 |
BLF 80 -205/8 | 201105 | 7074 | 10000 |
You can buy Invicta BLF vibration motors, find out the price and more information about the product by contacting our specialists.
