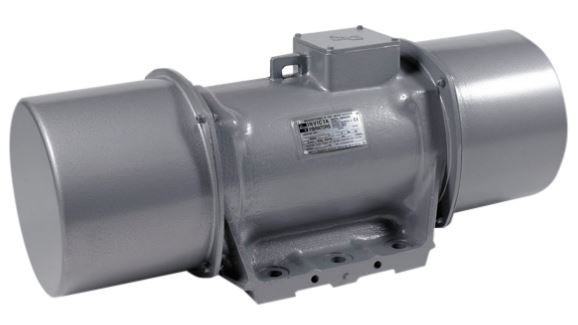

Electromechanical pad vibrators FBL/FBLz from the company Invicta They are represented by a wide range of power solutions for performing various technological operations related to active vibration action. A popular offer for compacting building mixes, unloading bunkers, equipping vibrating tables, screens, transporting bulk materials, etc. Circular vibrations are generated by an electric motor due to the displacement of the center of gravity by eccentric loads.
The design of this series has a reduced axle height, the FBL type is designed for operation under normal conditions, the FBLz version is designed for operation in explosive zones 21 and 22 (according to ATEX). The vibrator housing is completely sealed to prevent dust and water from entering the electric machine. To protect against overheating, thermistors are installed in sizes from FBL25.
Technical characteristics of Invicta FBL/FBLz pad vibrators
- Centrifugal (driving) force: 7769 - 130365 N;
- Static moment: 92 - 2580 kg •cm;
- Rated power: 0.5 - 10.3 kW;
- Power consumption: 0.7 - 11 kW;
- Supply voltage: 400 V AC;
- Rotation speed: 720 /960 /1440 rpm;
- Insulation class: F;
- The degree of protection of the case: IP66;
- Operating temperature range: - 20 … +40 °C.
Standard sizes of Invicta FBL motor vibrators (4-pole version, 1440 rpm)
Type vibration motors | Centrifugal power, N | Static moment, kg ·cm | Power, Tue |
FBL25 -11/4 | 10477 | 92 | 500 |
FBL30 -18/4 | 17207 | 151 | 1150 |
FBL30 -25/4 | 24495 | 215 | 1150 |
FBL40 -24/4 | 23436 | 206 | 1800 |
FBL40 -35/4 | 34315 | 302 | 1800 |
FBL50 -40/4 | 39063 | 344 | 4800 |
FBL50 -65/4 | 63716 | 560 | 4800 |
FBL50 -70/4 | 68670 | 610 | 4800 |
FBL50 -83/4 | 80422 | 706 | 5500 |
FBL75 -120/4 | 116386 | 1024 | 10250 |
Standard sizes of Invicta FBL/FBLz motor vibrators (6-pole version, 960 rpm)
Type vibration motors | Centrifugal power, N | Static moment, kg ·cm | Power, Tue |
FBL25 -8/6 | 7769 | 154 | 510 |
FBL30 -11/6 | 10605 | 210 | 900 |
FBL30 -18/6 | 17236 | 341 | 900 |
FBL40 -16/6 | 15323 | 303 | 1800 |
FBLz 40 -25/6 | 25195 | 498 | 1800 |
FBLz 40 -27/6 | 26477 | 524 | 1800 |
FBLz 40 -35/6 | 34335 | 680 | 1800 |
FBLz 45 -42/6 | 41202 | 815 | 2310 |
FBLz 45 -50/6 | 49050 | 970 | 2310 |
FBL50 -38/6 | 36395 | 720 | 4000 |
FBL50 -38/6 | 36396 | 720 | 4000 |
FBL50 -42/6 | 41222 | 816 | 4000 |
FBL50 -42/6 | 41222 | 816 | 4000 |
FBLz 50 -60/6 | 58716 | 1174 | 4000 |
FBLz 50 -72/6 | 70632 | 1398 | 4000 |
FBL50 -78/6 | 76440 | 1507 | 4000 |
FBL75 -107/6 | 103486 | 2048 | 10000 |
FBL75 -135/6 | 130365 | 2580 | 10000 |
Standard sizes of Invicta FBL motor vibrators (8-pole version, 720 rpm)
Type vibration motors | Centrifugal power, N | Static moment, kg ·cm | Power, Tue |
FBL40 - 17/8 | 16441 | 578 | 1100 |
You can buy Invicta FBL/FBLz vibration motors, find out the price and more information about the product by contacting our specialists.
