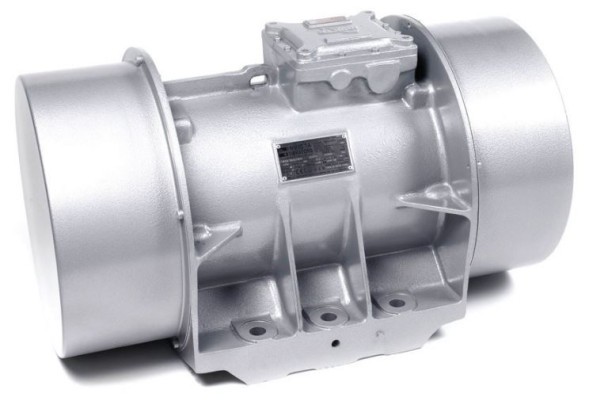

Electromechanical pad vibrators ULBK from the company Invicta They are represented by a wide range of power solutions for performing various technological operations related to active vibration action. A popular offer for compacting building mixes, unloading bunkers, equipping vibrating tables, screens, transporting bulk materials, etc. Circular vibrations are generated by an electric motor due to the displacement of the center of gravity by eccentric loads.
The design of the vibrators is sealed to prevent dust and water droplets from entering the electric machine. This series is suitable for operation in difficult production conditions, including in explosive zones of Class 1 (gas) of groups C and D, class 2 (dust) of groups E, F and G, according to the standards of the USA and Canada (UL certification). The housing for small sizes is made of aluminum alloy, for more powerful models it is made of high-strength cast iron with spherical graphite.
Technical characteristics of Invicta ULBK pad vibrators
- Centrifugal (driving) force: 3443 - 147150 N;
- Static moment: 43.1 - 5174 kg•cm;
- Rated power: 0.25 - 10 kW;
- Power consumption: 0.45 - 10.8 kW;
- Supply voltage: 400 V AC;
- Rotation speed: 720 /960 /1440 rpm;
- The degree of protection of the case: IP65;
- Insulation class: F.
Standard sizes of Invicta ULBK motor vibrators (4-pole version, 1440 rpm)
Type vibration motors | Centrifugal power, N | Static moment, kg·cm | Power, Tue |
ULBK 21 - 5/2 | 3443/4905 | 43,1 | 250 |
ULBK 26 - 7.5/4 | 7357 | 64,7 | 500 |
ULBK 26 - 11/4 | 10790 | 94,9 | 500 |
ULBK 26 - 18/4 | 13735 | 121 | 500 |
ULBK 30 - 25/4 | 17658 | 155 | 1150 |
ULBK 30 - 25/4 | 24525 | 216 | 1150 |
ULBK 30 - 29/4 | 28206 | 248, | 1150 |
ULBK 40 - 35/4 | 34335 | 302 | 1800 |
ULBK 45 - 45/4 | 44145 | 388 | 2685 |
ULBK 50 - 55/4 | 53955 | 474 | 3350 |
ULBK 50 - 75/4 | 73575 | 647 | 4800 |
ULBK 60 - 95/4 | 93195 | 820 | 7750 |
Standard sizes of Invicta ULBK motor vibrators (6-pole version, 960 rpm)
Type vibration motors | Centrifugal power, N | Static moment, kg·cm | Power, Tue |
ULBK 26 - 4/6 | 3924 | 77,6 | 510 |
ULBK 26 - 8/6 | 7848 | 155 | 510 |
ULBK 26 - 11/6 | 10790 | 213 | 510 |
ULBK 30 - 14/6 | 13734 | 271 | 900 |
ULBK 30 - 18/6 | 17658 | 349 | 900 |
ULBK 40 - 27/6 | 26487 | 524 | 1800 |
ULBK 45 - 42/6 | 41200 | 815 | 2310 |
ULBK 50 - 60/6 | 58860 | 1164 | 4000 |
ULBK 50 - 75/6 | 73575 | 1455 | 4000 |
ULBK 60 - 105/6 | 103000 | 2037 | 6200 |
ULBK 75 - 150/6 | 147150 | 2910 | 10000 |
Standard sizes of Invicta ULBK motor vibrators (8-pole version, 720 rpm)
Type vibration motors | Centrifugal power, N | Static moment, kg·cm | Power, Tue |
ULBK 30 - 7.5/8 | 7357 | 259 | 500 |
ULBK 30 - 10/8 | 9810 | 345 | 500 |
ULBK 40 - 15/8 | 14715 | 517 | 1100 |
ULBK 45- 24/8 | 23838 | 838 | 2000 |
ULBK 50 - 35/8 | 34335 | 1207 | 3300 |
ULBK 50 - 45/8 | 44145 | 1552 | 3300 |
ULBK 50 - 55/8 | 53955 | 1897 | 3300 |
ULBK 60 - 65/8 | 63765 | 2242 | 4900 |
ULBK 60 - 90/8 | 88920 | 3105 | 4900 |
ULBK 75 - 150/8 | 147150 | 5174 | 7750 |
You can buy Invicta ULBK vibration motors, find out the price and more information about the product by contacting our specialists.
